 COUPLINGS FOR SOLID SHAFTS

SOLID PROPSHAFTS RUDDERS SUBMERGED COUPLINGS  SUBMERGED  ENGINE MOUNTS BRASS COUPLERS CONNECTORS

This section contains Rubber couplings, huco type and Kalistratov couplings plus ballraced prop shafts all with a sealed ballrace, lead/teflon bush and grease nipple. The propeller shafts are stainless steel with  M5 threads for the props. Skegs are supplied for the shafts. The quiet rubber mounts with silentbloc rubbers will reduce vibration and noise and allow the model engine to be easily fitted and removed. The rudders are all stainless steel and waterproof. The rudder (tiller) arms are strong and mostly double sided.
.  COUPLINGS for solid shafts

.For Flexi Shaft couplings  Click here

.
CH1A  Genuine HARMA coupling with rubberised centre and cnc aluminium ends 5mm bore x 5mm bore, 20mm diameter , 25mm long, Very good brushless coupler



9.95




CH1B   HARMA  rubberised centre only for CH1A coupling



3.95




CNC1  Mini Kali type coupling for 3.5cc  5mm  x 5mm. 18mm diameter, 40mm long but can be cut down to 32mm long.


25.95

no stock


CNC2  Mini Kali type coupling for 3.5cc  6mm  x 5mm. 18mm diameter, 40mm long but can be cut down to 32mm long.


25.95
no stock

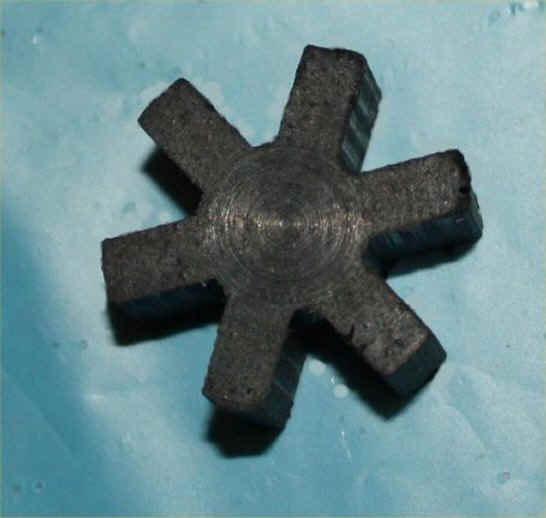

CNC1A Spare rubber star centre for CNC1 and CNC2



2.95
CNCBB3 Kali type aluminium brushless coupling for 7.5cc geared and brushless, 7mm bore to 5mm bore 40mm long, 24mm diameter



28.95
CNC3A Spare rubber star centre for CNC3



2.95
CNC4 Kali type aluminium coupling for 15cc using gearbox.  8mm PLAIN x 5mm.



28.95

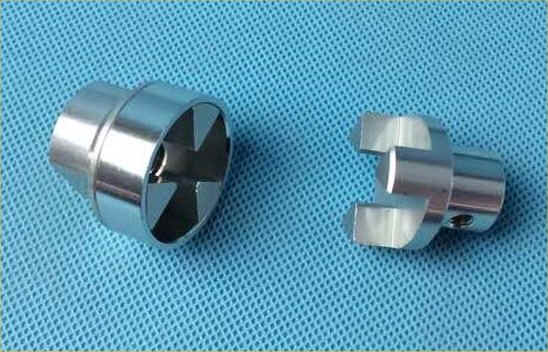

CNC5 Kali type aluminium coupling for 15cc,  M8 x 5mm.  The best coupling in the world for 15cc motors in FSRV 26mm diameter x 40mm long



28.95

no stock

CNC5A Kali coupling rubber centre for CNC4, CNC5, 8mm long



2.95
CNC6A Kali coupling rubber centre for CNC6, CNC7. 13mm long



2.95
CNC7 RUBBER COUPLING with starter pulley . CNC aluminium ends with  to fit Zenoah , Tiger King EVO and GP etc to 5mm plain  shaft. Tapered inside to fit onto the crankshaft taper



30.95

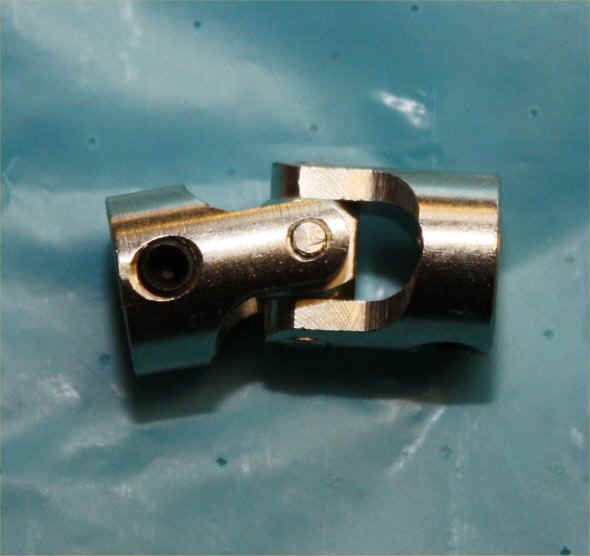

HCC3 Metal strong huco type coupling (universal joint)  3.2mm plain to 4mm plain with grubscrew fixings suitable for powerful electric motors



3.95
HCC4 Metal steel strong huco type coupling (universal joint)  4mm plain to 4mm plain with grubscrew fixings suitable for powerful electric motors



3.95
HCC5 Metal steel strong huco type coupling (universal joint)  5mm plain to 4mm plain with grubscrew fixings suitable for powerful electric motors



3.95
HCC6 Metal steel strong huco type coupling (universal joint)  5mm plain to 5mm plain with grubscrew fixings suitable for powerful electric motors



3.95
