SURFACE DRIVE HARDWARE 3/16 and 1/4
Home Octura Propellers
ProBoat flex shafts
Hardware Parts 4mm
brushless flex shafts
| PLEASE NOTE. DURING THESE DIFFICULT TIMES, WE ARE WORKING AS NORMAL, SHIPPING OUT ORDERS WITHIN 2 WORKING DAYS. |
| . | . | . | |

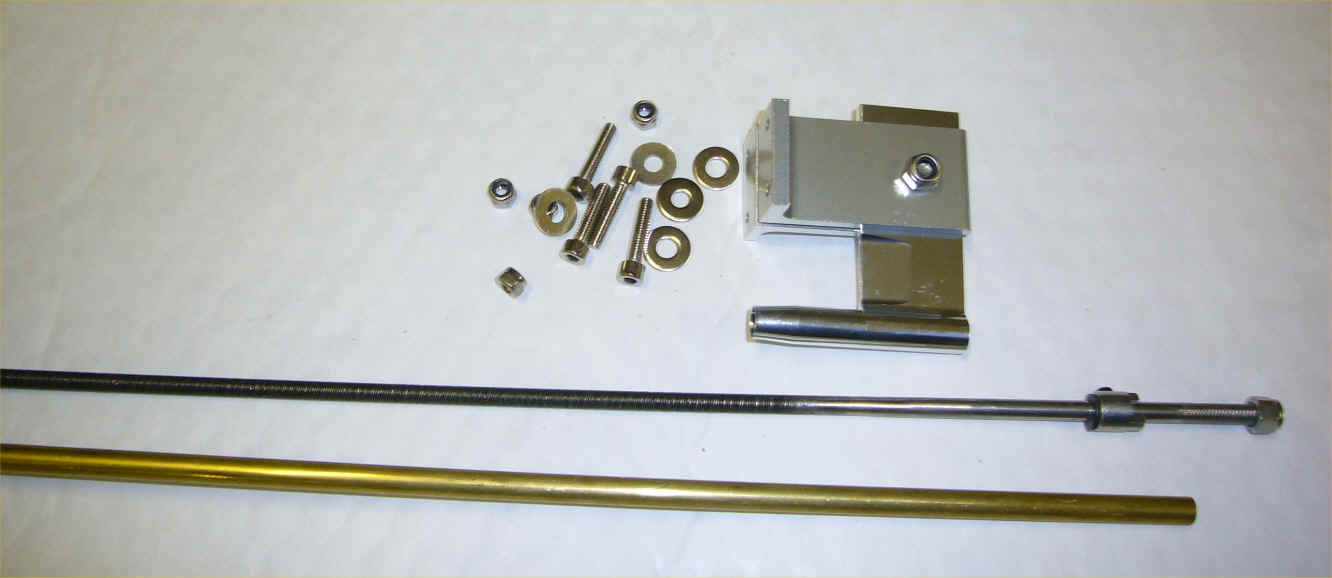

| HF2 | 3/16"
(4.76mm). Full strut set with flexishaft and stub shaft (0verall length
450mm), drive
dog, brass tube, teflon tube liner, cnc machined aluminium strut with steel/
teflon
bearings. Can easily be cut down to shorter lengths.
Suitable for mono's, cats and hydro's up to 11cc and brushless motors up to 4000 watts. Use with HF115 or HF116 rudder |
|
£39.95 |
| HF3 | 3/16"
(4.76mm). Same as HF2 flexishaft but 600mm overall length Suitable for mono's, cats and hydro's up to 11cc and brushless motors up to 4000 watts.Can easily be cut down to shorter lengths. Use with HF115 or HF116 rudder |
 |
£42.90 |
| HF7 | 1/4"
((6.35mm) flex shaft assembly up to 25"- 635mm long. Full strut set with flexishaft and stub shaft
, drive
dog, brass tube, teflon tube liner, cnc machined aluminium strut with steel/teflon
bearings.Can easily be cut down to shorter lengths.
Suitable for monos, cats and hydros. USE WITH HF117, HF118 or HF119 rudders Upgrade to 1/4" stepped down to 3/16 for
prop |
|
£45.90 |
| HF8 | 1/4"
((6.35mm). Same flex shaft as HF7 but up to 32"- 810mm long. Suitable for mono's, cats and hydro's.Can easily be cut down to shorter lengths. USE WITH HF117, HF118or HF119 rudders |
|
£49.90 |

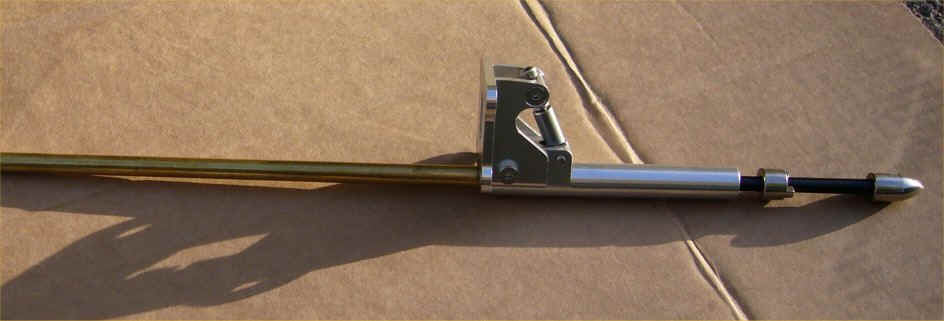

| HF9 | 3/16"
(4.76mm). Full stinger set with 18 inch (480mm) flexishaft and stub shaft, drive
dog, brass tube, teflon tube liner, cnc machined aluminium strut with lead teflon
bearings. Adjustable for angle. Can easily be cut down to shorter lengths.
Suitable for mono's, up to 11cc and brushless motors up to 4000 watts. Use with HF115 or HF116 rudder |
 |
£48.95 |

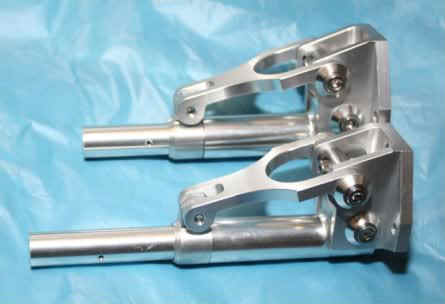

| HF10 | 1/4"
(6.35mm). Full heavy duty VS2 stinger set with 25 inch (635mm) flexishaft and stub shaft, drive
dog, brass tube, teflon tube liner, cnc machined aluminium strut with lead teflon
bearings. Stinger is adjustable for angle. Can easily be cut down to shorter lengths.
Suitable for mono's, 15cc to 32cc and brushless motors up to 7000 watts. Use with HF117 or HF118 rudder Upgrade to 32" shaft and longer
tube |
|
£54.95 |
| HF17 | Complete
Surface Drive Flexi-shaft assembly for dog drive 3/16 and 4mm
bore props (supplied with 4mm to 3/16 adapter tube) with 4mm flexishaft
for 540/700 size electric motors and similar brushless and .12/.15 nitro. Suitable for
Hydro's, Deep V’s and Catamarans.
Contains 4mm Flexi-shaft with 4mm stainless steel stub-shaft,
drive dog, teflon tube liner, strut with lead/teflon bushes, brackets and
all nuts, bolts needed. Flexi and stub is 350mm long but can be cut down
to length. More electric hardware here FAST ELECTRICS. |
 |
£35.95 |

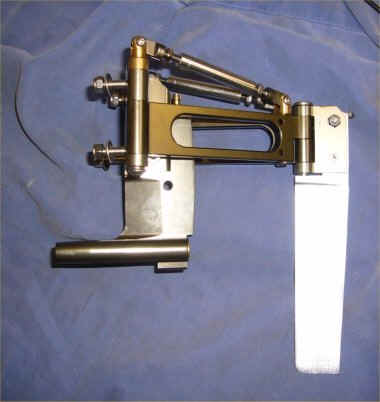

| HF18 | Complete
Surface Drive Flexi-shaft assembly with inline strut and rudder plus shaft
and tube. Suitable for, Deep V’s and Catamarans.
Contains brass tube, teflon tube liner, 650mm flexishaft 1/4 6.35mm diameter, long brackets
and rudder assembly. Strut has steel/teflon bushes, brackets and
all nuts, bolts are included. Flexi and stub is 650mm long but can be cut down
to length. Rudder has 2 water pickups and is 160mm deep. This unit can be
used with props up to 85mm diameter.
Upgrade to 32" long shaft and longer
tube |
 |
£57.95 no stock |
| HF22 | 3/16 Stinger drive. The most streamlined stinger drive available with sturdy adjustment. Very strong CNC machined aluminium drive unit with adjustment for shaft angle. Fitted withsteel teflon bushes. |
 |
£24.95 |
| HF24 | Heavy Duty 1/4 6.35mm BLACK VS4 Stinger drive. Very strong CNC machined aluminium drive unit with adjustment for shaft angle and length. Fitted with steel teflon bushes. |   |
£45.95 |
| HF25 | 1/4" Stinger drive.streamlined stinger drive available with sturdy adjustment. Very strong CNC machined aluminium drive unit with adjustment for shaft angle. Fitted with steel teflon bushes. |
|
£26.95
|
| HF26 | 1/4" Stinger drive.streamlined stinger drive available with sturdy adjustment. Very strong CNC machined aluminium drive unit with adjustment for shaft angle. Fitted with steel teflon bushes. |
|
£27.95
|

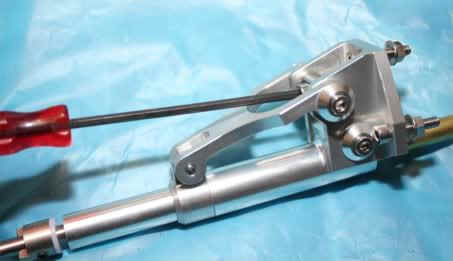

| HF31 | RC
adjustable angle 1/4 Stinger
drive . Very strong CNC machined aluminium drive unit with radio adjustment
for shaft angle. Fitted with steel teflon bushes. The For all 1/4"flexis, welded
type and square drive.
|
 |
£54.95 |
| HF32 | RC
adjustable angle 3/16 Stinger
drive . CNC machined aluminium drive unit with radio adjustment
for shaft angle. Fitted with lead teflon bushes. The For all 3/16"flexis, welded
type and square drive.
|
|
£44.95 |
| HF33 | RC
adjustable angle 4MM Stinger
drive . CNC machined aluminium drive unit with radio adjustment
for shaft angle. Fitted with lead teflon bushes. The For all 4mm flexis, welded
type and square drive.
|
|
£44.95 |

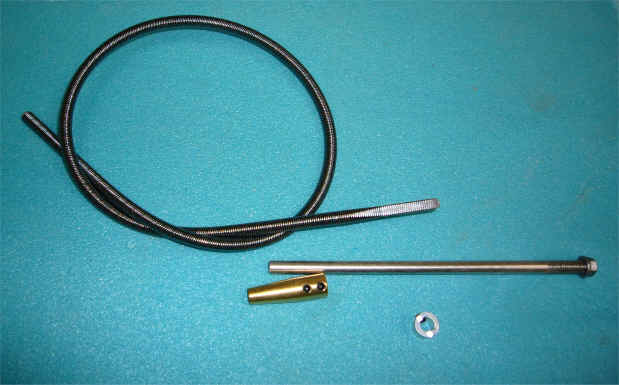

| HF34 | Spare flexi-shaft. 4mm diameter flexishaft and 4mm stub shaft welded. 320mm long |  |
£11.50 |
| HF34A | Spare flexi-shaft. 4mm diameter flexishaft and 4mm stub shaft welded. 320mm long RIGHT HAND ROTATION | |
£12.50 |
| HF35 | Spare flexi-shaft 3/16" welded to 3/16 stubshaft, - 450mm long. | |
£16.95 |
| HF36 | Spare flexi-shaft. 3/16" welded to 3/16 stubshaft, 650mm long. | |
£18.95 |
| HF37 | Spare flexi-shaft. 3/16" welded to 3/16 stubshaft, 450mm long. RIGHT HAND ROTATION | |
£19.95 |
| HF39 | Spare 1/4" flexi-shaft with 1/4" stub shaft, 25" - 635mm long. |  |
£16.95 |
| HF42 | Spare
RH 1/4" flexi-shaft with 1/4" stub shaft, 25" - 635mm long. for RIGHT HAND ROTATION |
|
£22.95 |
| HF45 | Spare 1/4"flexi-shaft 1/4" stub shaft., 36" - 950mm long. | |
£23.95 |
| HF49 | Spare flexi-shaft. 1/4" Flexi and 1/4"stub shaft turned down to 3/16, 25" - 635mm long. |   |
£22.00 |
| HF50 | Spare RH flexi-shaft. 1/4" Flexi and 1/4"stub shaft turned down to 3/16, 18" - 450mm long. Counter rotation | |
£22.95 |
| HF51 | Spare RH flexi-shaft. 1/4" Flexi and 1/4"stub shaft turned down to 3/16, 25" - 635mm long. Counter rotation | |
£26.95 |
| HF59 | Round 1/4" stubshaft for flexishaft with one end squared inside. 1/4" 6.35mm diameter, 5mm across the square flats |  |
£12.95 |
| HF60 | SQUARE ended 1/4 flexishaft (square is 5mm across flats). 650mm long |  |
£11.45 |
| HF61 | SQUARE ended RIGHT HANDED 1/4 flexishaft (square is 5mm across flats). 500mm long | |
£14.75 |
| HF62 | SQUARE ended 3/16" flexishaft (square is 4mm across flats). 400mm long | |
£8.95 |
| HF63 | SQUARE ended 4mm flexishaft (square is 3mm across flats). 290mm long | |
£6.95 |
| HF65 | 1 tapered aluminium propnut M4 for 4mm shaft |  |
£2.50 |

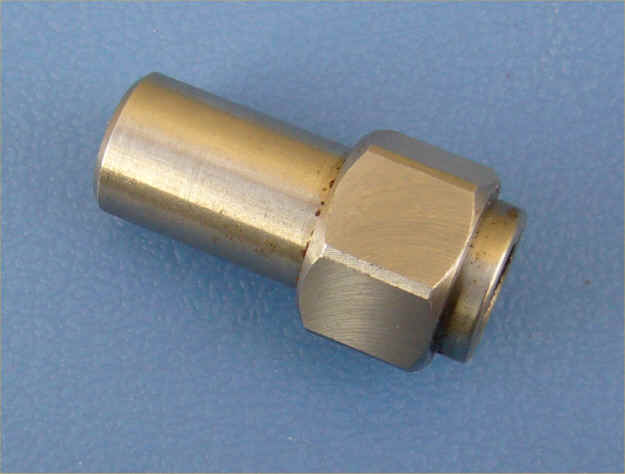

| HF68 | Stainless steel ferrule for 1/4" shaft and Square 1/4" flexishaft. 12.5mm o.d, 42mm long. 1/4 id at one end to fix onto the stubshaft and square 5mm across flats inside the tapered end. |  |
£7.95 |

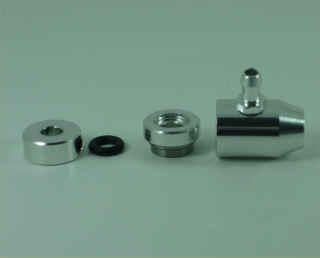

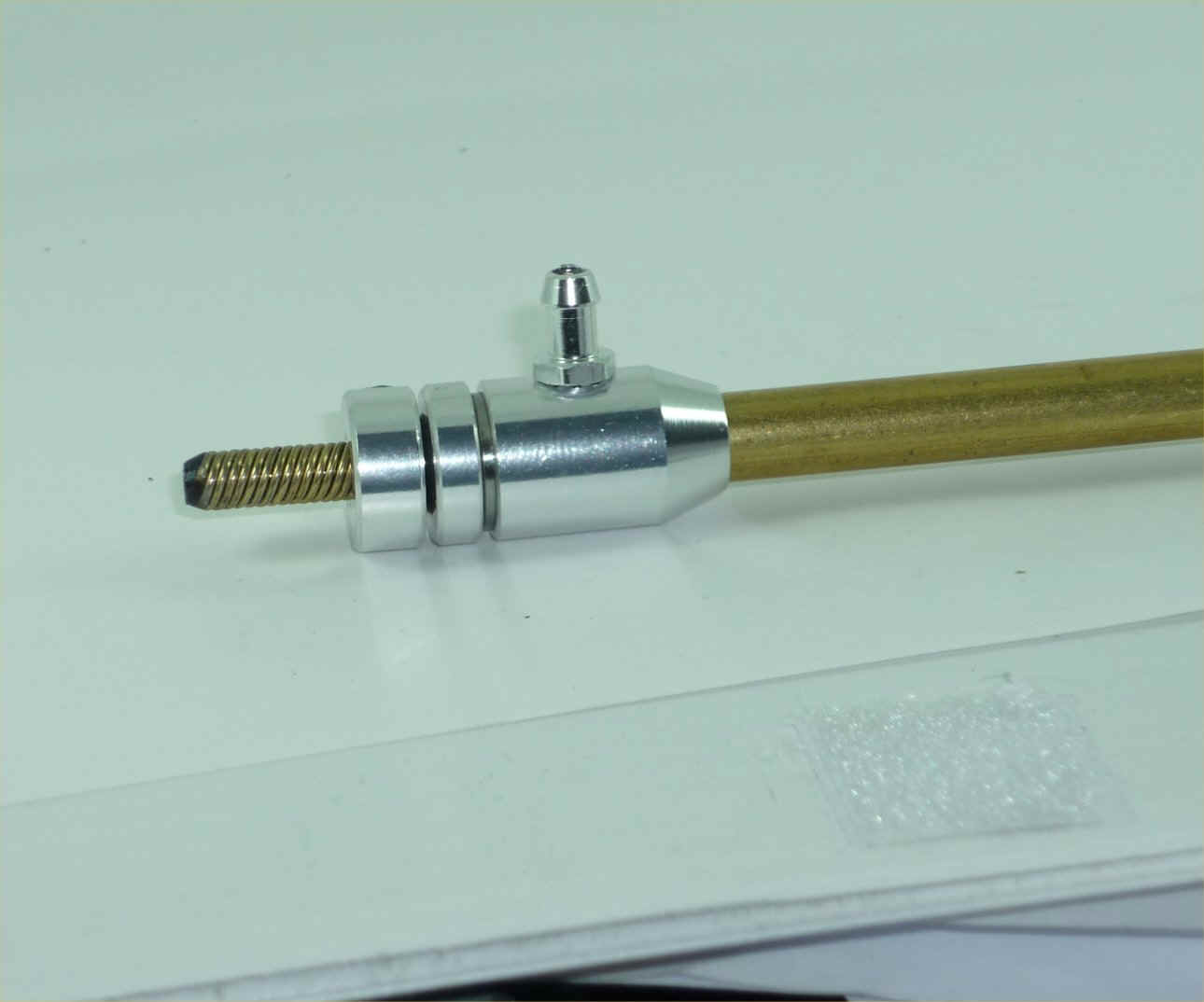

| HF78 | Rotating shaft seal for 3/16" (4.75mm) flexishafts. Fits onto the end of the tube and a miniature ballrace supports the flex cable and a rubber oring seals it. |
 |
no stock £8.95 |

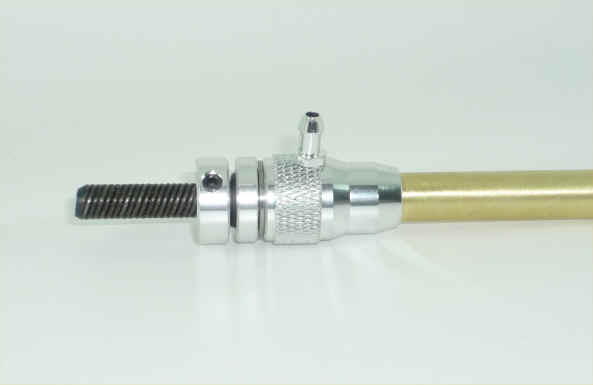

| HF79 | Rotating shaft seal for 1/4" (6.35mm) flexishafts. Fits onto the end of the tube and a miniature ballrace supports the flex cable and a rubber oring seals it. |
 |
£8.95 no stock |

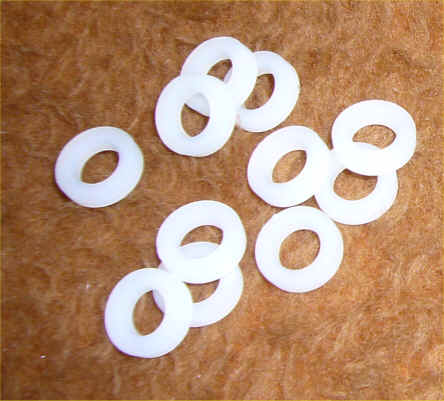

| HF81 | 10 x 4mm id teflon thrust washers 8mm od |  |
£2.95 |
| HF82 | 10 x 3/16" id ( 4.8mm) teflon thrust washers 10mm od | |
£2.95 |
| HF83 | 10 x 1/4 id teflon thrust washers 12mm od. | |
£2.95 |

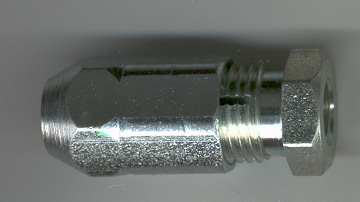

| HF84 | Flexhex steel collet engine coupling. 1/4 unf (1/4-28) for 3/16" flexishaft. Suitable for all .21 engines and most .40 and .45 engines. |
|
£11.95 |
| HF86A | Flexhex steel collet engine coupling. 8mm plain bore with grubscrew fixing to 1/4" flexishaft. |
|
£12.95 |
| HF87 | Flexhex
Stainless steel collet engine coupling. M8 for 1/4" flexishaft. Suitable
for CMB 90, Picco 90, CMB 67/80
|
|
£19.95 |

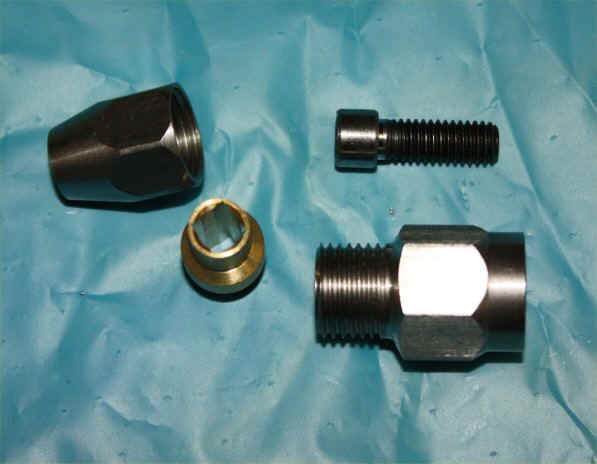

| HF87 | Flexhex
Stainless steel SQUARE collet engine coupling. M8 for 1/4"
square flexishaft. Suitable
for CMB 90, Picco 90, CMB 67/80
|
|
£20.95 |

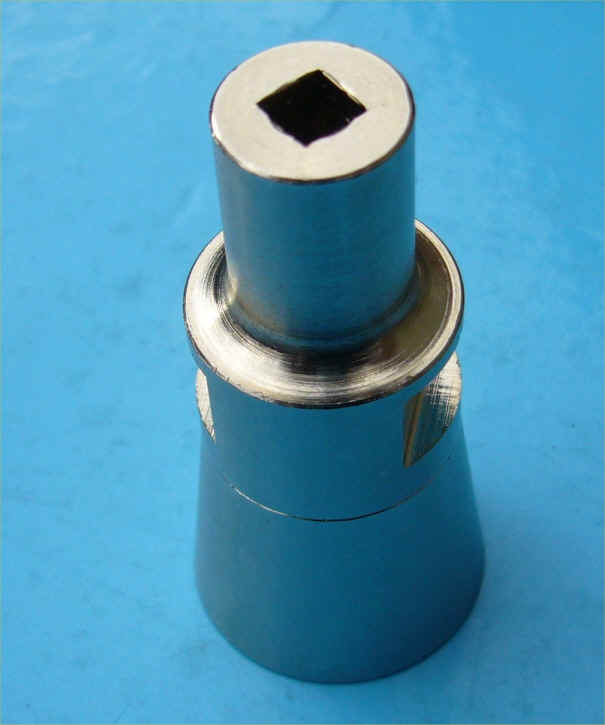

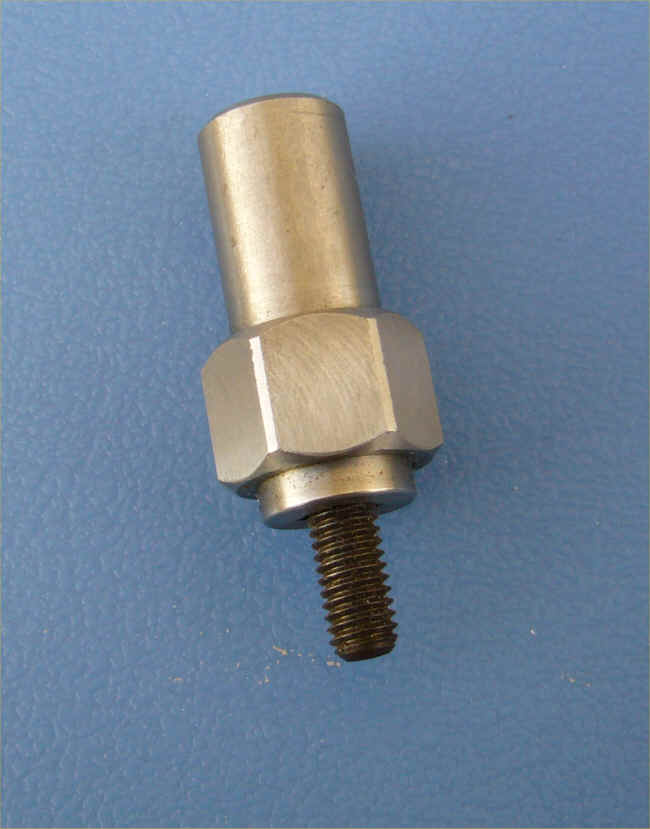

| HF89 | Square
drive coupling for Zenoah, Tiger King etc to fit 1/4 shafts.
NEW |
|
£14.95 |
| HF90 | Flexhex steel SUPER COLLET engine coupling. Extra strong body with reversed collet to grip the shaft tighter. Special for Zenoah QD Tiger King, RCMK for 1/4" flexishaft. This coupling slides onto the taper part of the shaft and has a separate locking collet for the shaft. |
|
£10.50 |
| HF96 | Collet coupling 1/4" with starter pulley for Zenoah Tiger King, Sikk, RCMK etc. Allows you to use a belt start but retain the pullstart. |
|
£15.95 |

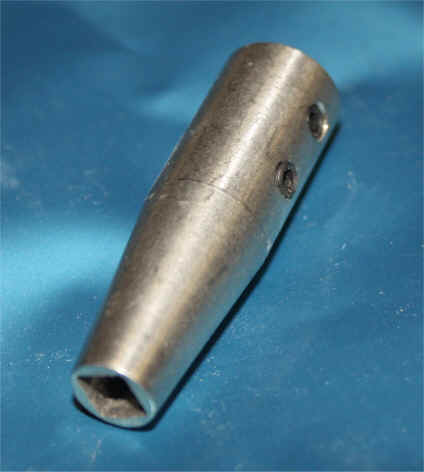

| HF97 | SQUARE Collet coupling 1/4" with starter pulley for Zenoah Tiger King,Sikk, RCMK etc. Allows you to use a belt start but retain the pullstart. |
|
£20.95 |
| HF98 | Spare SQUARE Collet |
|
£5.95 |
| HF99 | SPARE ROUND Collet |
|
£4.95 |
| HF100 | NEW CNC machined aluminium T-Bar propshaft support. Fits between 5" rails and suitable for 1/4" flexishafts (11/32 or 5/16 tubes). brass lubrication point included for lubricating shaft. For supporting the tube in mono's . |
|
£15.95
|
| HF101 | NEW CNC machined aluminium T-Bar propshaft support with oil cup for lubricating the shaft. Fits between 5" rails and suitable for 1/4" flexishafts (11/32 or 5/16 tubes).. For supporting the tube in mono's . |
|
£22.95 |
| HF102 | CNC machined aluminium COMPETITION T-Bar propshaft support with oil reservoir for lubricating the shaft. Fits between 5" rails and suitable for 1/4" flexishafts (11/32 or 5/16 tubes).. For supporting the tube in mono's . Each end is adjustable for length, oil resevoir inside. |
|
£17.95 |
| HF103 | NEW CNC machined aluminium T-Bar propshaft support with adjustment LEFT and RIGHT and UP and DOWN for ease of fotting. Fits between 5" rails and suitable for 1/4" flexishafts (11/32 or 5/16 tubes).. For supporting the tube in mono's . |
|
£21.95 |
| HF104 | NEW CNC machined aluminium tube holder for cats and hydros |
|
£19.95 |
| HF105 | Aluminium
oiler cup 21mm diameter, 27mm long.
|
 |
£4.95 |

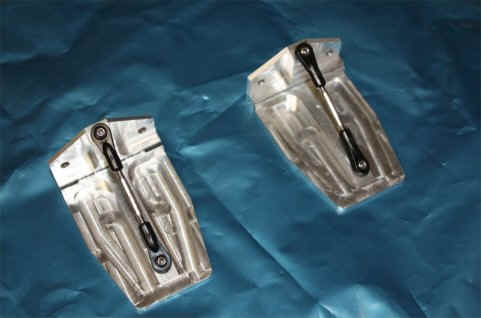

| HF106 | LARGE stainless steel and CNC aluminium trim tabs for DeepV type boats. 48mm long, 76mm wide. 2 pieces. |
|
£13.95
|
| HF107 | MEDIUM stainless steel and CNC aluminium trim tabs for DeepV type boats. 38mm long, 49mm wide. 2 pieces. |
|
£10.95
|
| HF108 | 4
piece set of trim tabs. Stainless steel and CNC aluminium trim tabs for DeepV type boats. 45mm
long, 57mm wide. 4 pieces.
|
|
£16.50
|
| HF109 | 2 piece set of trim tabs. Stainless steel and CNC aluminium trim tabs for DeepV type boats. 45mm long, 57mm wide. 2 pieces. |
|
£9.95
|
| HF109A | 2 piece set of mini trim tabs. Stainless steel and CNC aluminium trim tabs for DeepV type boats. 32mm long,38mm wide. 2 pieces. |
|
£10.95
|
| HF109B | Micro trim tabs (2) for fast electric with screw adjustment. Each tab is 30mm wide 37mm long. |
|
£7.95
|
| HF110 | 1
pair of RC adjustable CNC
aluminium large trim tabs.
|
|
£57.00
|
| HF114 | Rudder for surface drive fast electrics or .12 to .18 engines. 78mm long. Built in waterscoop, highly polished CNC machined aluminium. Small rudder assembly with 78mm long rudder blade, leading edge 42mm from the transom. |
|
£7.95
|

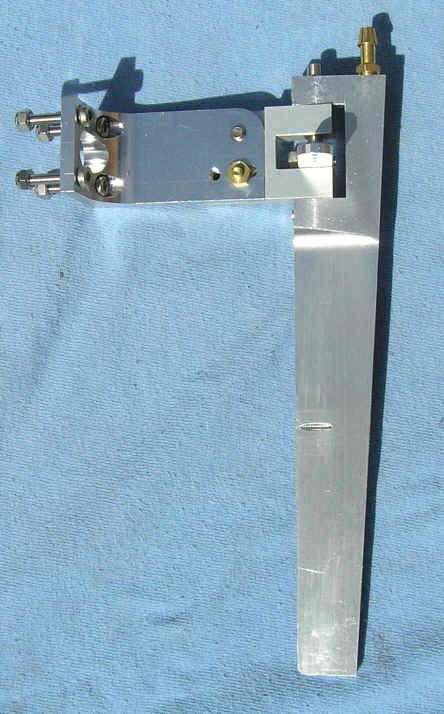

| HF115 | Wedge rudder for surface drive fast electrics or .12 to .18 engines. Built in waterscoop, highly polished CNC machined aluminium. Small rudder assembly with 95mm long rudder blade, leading edge 42mm from the transom. |
|
£8.95
|
| HF116 | CNC machined aluminium medium rudder assembly with 130mm (5") long rudder blade, 76mm transom to front of rudder blade and built in waterpickup. for brushless and 3.5cc to 7.5cc size boats. |
|
£17.95
|

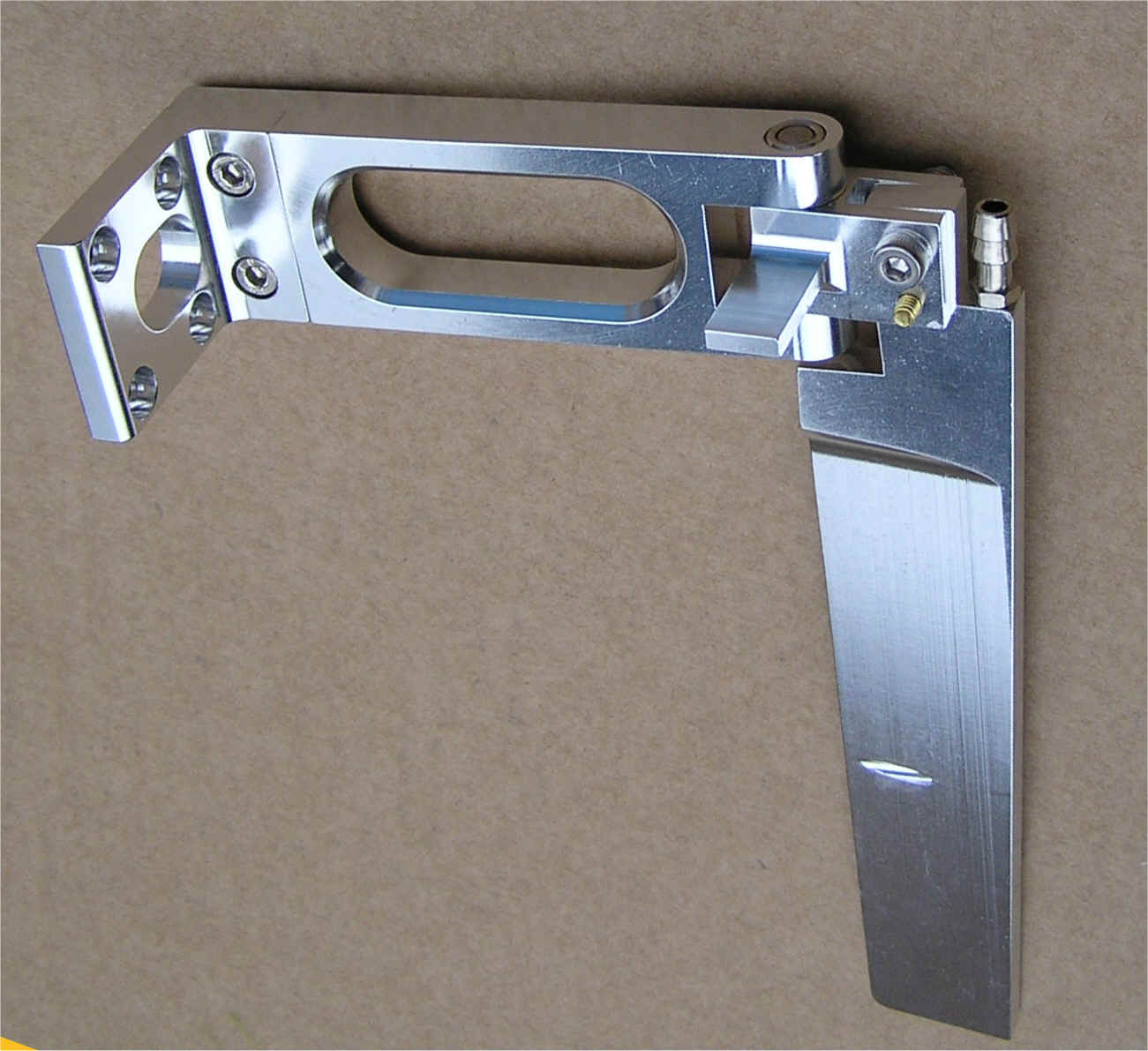

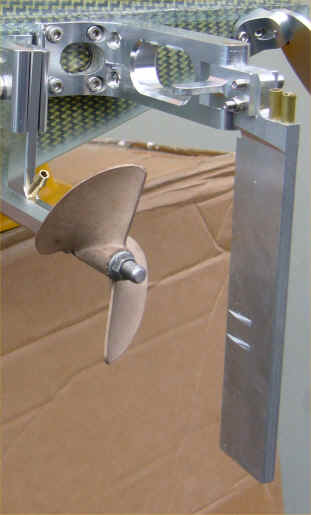

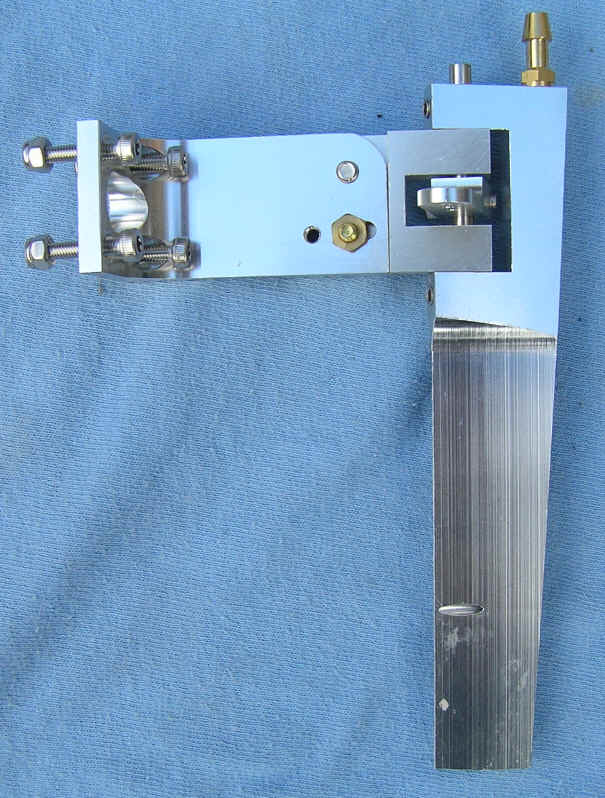

| HF117 | Standard rudder. CNC machined aluminium large rudder assembly with 160mm (6 1/2") long rudder blade and 100mm bracket (from transom to front of rudder blade). Twin waterpickups. (one pickup can be blocked off if not required) |
|
£24.95 |

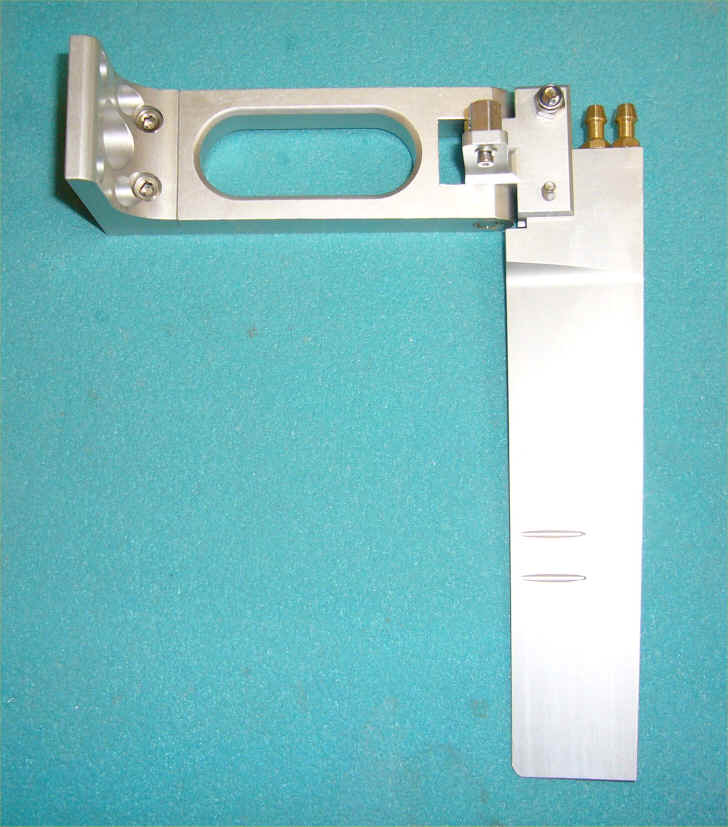

| HF118 | TWIN water pickup (LONG BRACKET 150mm) CNC machined aluminium large rudder assembly with 160mm (6 1/2") long rudder blade. |
|
£29.85 |
| HF119 | RUDDER with SHORT BRACKET for cats and hydros. CNC machined aluminium large rudder assembly with 160mm (6 1/2") long rudder blade. TWIN PICKUP . |
|
£24.95 |
| HF125 | Spare CNC machined aluminium rudder blade for HF117,HF118, HF119. Twin water pickup. |
|
£15.95 |
| HF126 | Spare CNC machined bearing block for all HF117,HF118, HF119 |
|
£8.95 |

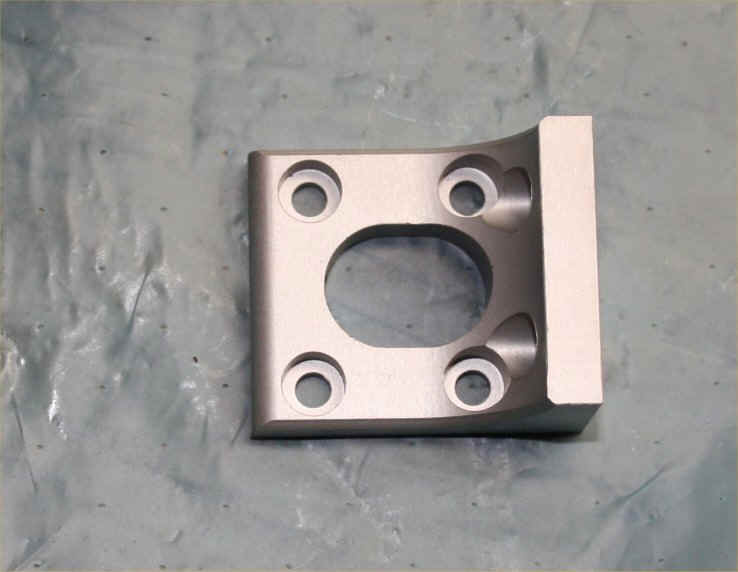

| HF127 | Spare CNC machined bracket for HF117, HF118, HF119. |
|
£4.95 |
| HF128 | Spare CNC machined aluminium 150mm rudder bracket to convert rudders with 100mm bracket. |
. |
no stock £14.95
|

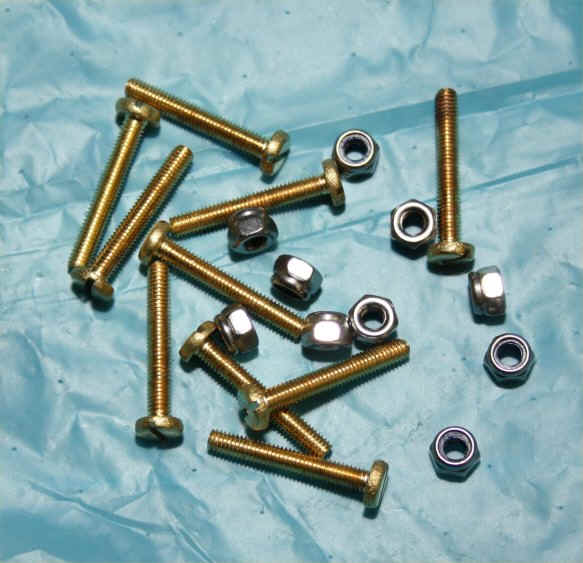

| HF129 | 10 brass breakaway screws for rudders. These fit in the lower hole of the rudder pivot bracket and will break if the rudder hits something. Complete with locknuts. |
|
£2.95 |

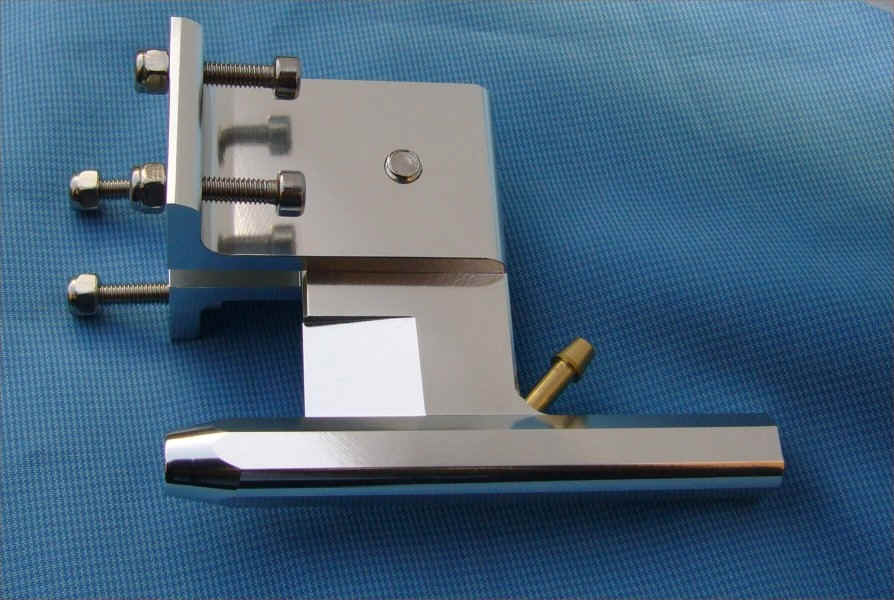

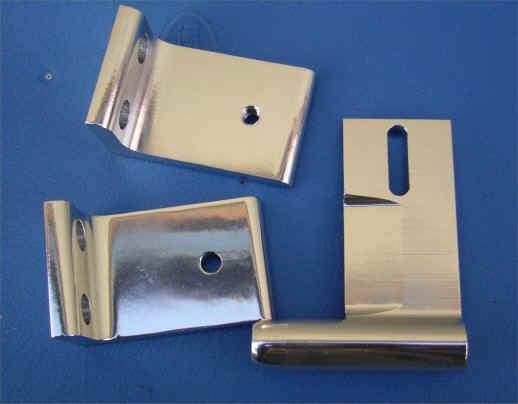

| HF132 | STRUT CNC machined aluminium for 1/4 shafts, 70mm long. For mono's and cats. Includes CNC machined brackets, lead teflon bearings and all screws. |
|
£22.50 |
| HF133 | STRUT CNC machined aluminium for 3/16 shafts, for RIGGERS AND HYDROS Includes CNC machined brackets, lead teflon bearings and all screws. |
|
£17.50 |
| HF134 | Aluminium strut with lead teflon bearings and brackets. For 3/16" shafts. |
|
£17.50 |
| HF135 | Spare aluminium strut with lead teflon bearings. For 4mm shafts. |
|
£12.50 |
| HF137 | Long aluminium strut with skeg for cats. Fitted with steel/ teflon bushes , brackets and all screws etc. For 1/4 shafts |
|
£26.95
|
| HF138 | RIGGER TURN FIN Large for 15cc and 27cc riggers. 115mm deep, 63mm wide. aluminium 7075T6 |
 |
£25.95 |
| HF139 | TURN FINS Large. Helps deep V in the turns. 2 large turn fins for gas boats CNC machined aluminium with CNC machined stainless brackets and screws. 90mm deep |  |
£11.95 |
| HF140 | TURN FINS Medium. Helps deep V in the turns. 2 medium turn fins CNC machined aluminium with CNC machined stainless brackets and screws. 67mm deep | |
£10.50 |
| HF141 | TURN FINS Small. Helps deep V in the turns. 2 small turn fins CNC machined aluminium with CNC machined stainless brackets and screws. 52mm deep | |
£8.95 |

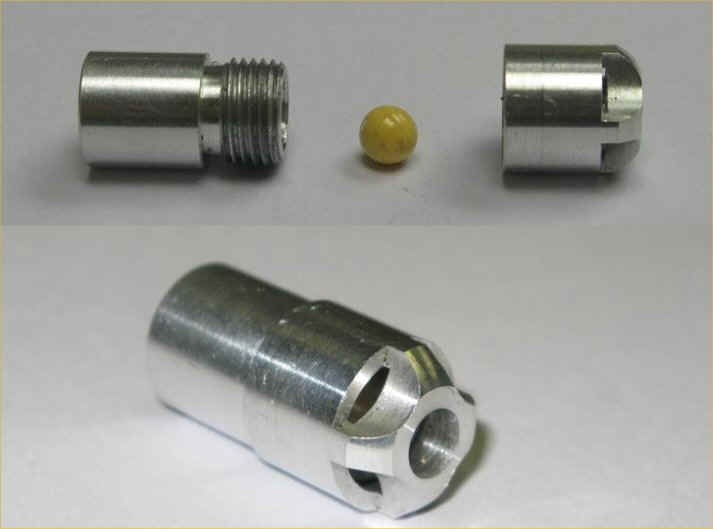

| HF142 | Autobailer one way valve. Fitted to the back of the boat, the valve allows water out but stops water coming in. |  |
£5.95 |
| HF144 | 4mm drive dog stainless steel |
|
£1.95 |
| HF145 | 3/16" drive dog stainless steel |
|
£2.25 |
| HF147 | 1/4" drive dog stainless steel |
|
£2.95 |
| HF148 | Competition streamlined 1/4" drive dog stainless steel |
|
£4.45 |
| HF149A | 2
piece Aluminium
prop
saver for 1/4"(6.35mm) flexishaft Clamps onto flexishaft between coupling and top end of tube to
stop flexishaft being lost if coupling becomes loose. This type of saver
does not damage the cable |
|
£5.95
|
| HF150 | NEW
2 piece Aluminium
prop
saver for 3/16" (4.75mm). Clamps onto flexishaft between coupling and top end of tube to
stop flexishaft being lost if coupling becomes loose.
This type of saver
does not damage the cable |
|
£5.95
|
| HF151 | Aluminium
prop
saver for 4mm flex shafts. Clamps onto flexishaft between coupling and top end of tube to
stop flexishaft being lost if coupling becomes loose. |
|
£3.95 |
| HF152 | Brass tube for 3/16" flexi's for up to 450mm flexi. 1/4" o.d. thin wall standard stuffing tube. 300mm long. |
.
|
£5.00 |
| HF154 | Brass tube for 25" 1/4" flexis. 480mm long . 5/16 o.d. (8mm) thin wall standard stuffing tube. |
.
|
£6.95 |
| HF155 | Brass tube for 36" 1/4" flexis. 30" (700mm) long . 5/16 o.d. (8mm) thin wall standard stuffing tube. |
.
|
£12.40 |
| HF156 | Brass tube to slide over 5/16 brass tube 200mm long . 11/32 o.d. (9mm) thin wall standard stuffing tube. |
.
|
£3.95 |
| HF157 | Tube clamp and oiler cnc aluminium for 6mm tubes |
.
|
£6.95 |
| HF157A | Tube clamp and oiler cnc aluminium for 7mm to 7.2mm tubes |
.
|
£6.95 |
| HF157B | Tube clamp and oiler cnc aluminium for 8mm to 8.2mm tubes |
.
|
£6.95 |
| HF158 | Tube clamp and oiler cnc aluminium for 8.8mm to 9mm tubes |
.
|
£6.95 |

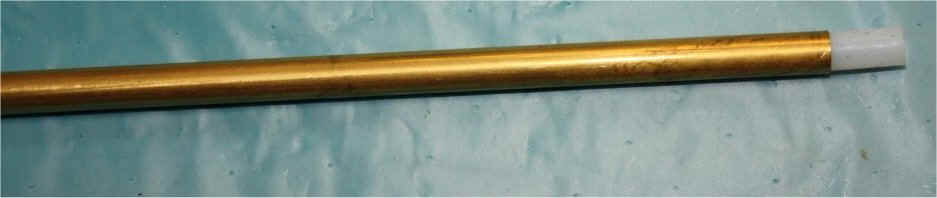

| HF159A | 6.1mm brass tube with teflon liner 400mm long for 4mm flexi. |
.
|
£5.95 |
| HF160 | 9/32" (7.2mm) brass tube with teflon liner for 450mm long 3/16 flexi. Tube is 360mm long. Suitable for upgrade on HF2 |
.
|
£7.50 |
| HF160A | 9/32" (7.2mm) brass tube with teflon liner for 695mm 3/16 flexi. Tube is 585mm long. Suitable for upgrade on HF3 |
.
|
£10.20 |
| HF161 | 11/32" (9mm) 18 "(450mm) brass tube with teflon liner for 25" 1/4 flexi. |
.
|
£9.00 |
| HF163 | 11/32" (9mm) Brass tube with teflon liner for 36" 1/4 flexi. 700mm tube length |
.
|
£13.95 |
| HF164 | Rudder pushrod 2.8mm with 1 x heavy duty steel quicklink. |
|
£2.95 |
| HF170 | 3/16" ( 4.87mm) lead teflon bushes. 1/4" od. ( 6.35mm) .4 pieces. |
|
£2.95 |
| HF171 | 1/4" (6.35mm ) steel teflon bushes. 5/16" od (8mm) 4 pieces |
. |
£2.95 |
| HF172 | 5mm id x 7mm steel teflon bushes .4 pieces |
. |
£2.95 |
| HF173 | 4mm i.d. x 5.5mm o.d. steel teflon bushes. 4 pieces. |
. |
£2.95 |
| HF174 | 4mm i.d. x 6mm o.d. steel teflon bushes. 4 pieces. |
. |
£3.95 |

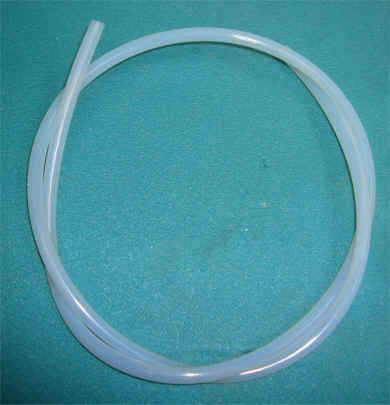

| HF176 | Teflon liner for 4mm flexi. 1 metre. |
.
|
£11.00 |
| HF177 | Teflon liner for 3/16" flexi. 1 piece 39" long (1 metre). |
.
|
£13.00 |
| HF178 | Teflon liner for 1/4" flexi. 1 piece 39" (1 metre) long. 7.9mm outside, 7mm inside. |
.
|
£15.00 |

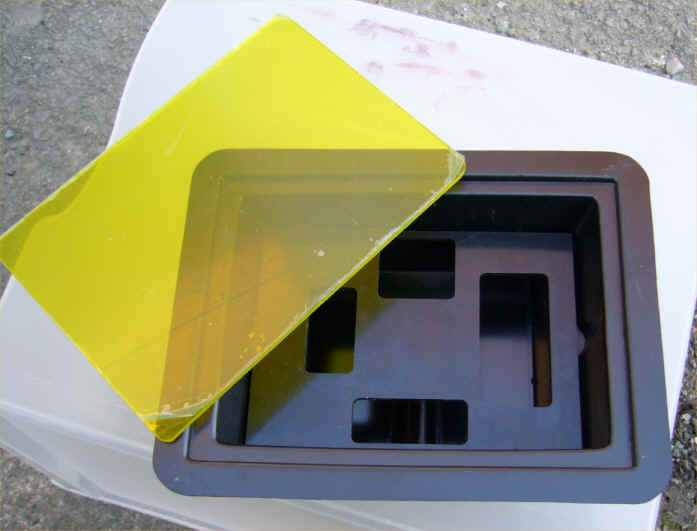

| RBX7 | RADIO
BOXES for all boats
See our other radio boxes here Model Boat Radio Boxes |
. |
. |

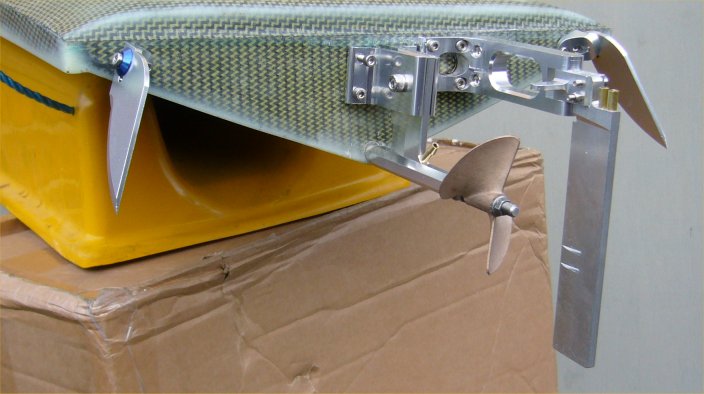

| . | On the right is a typical mono setup with HF 49A twin pickup rudder, HF16A strut and HF20 turn fins. ( click to enlarge.) |
|
. |
412
