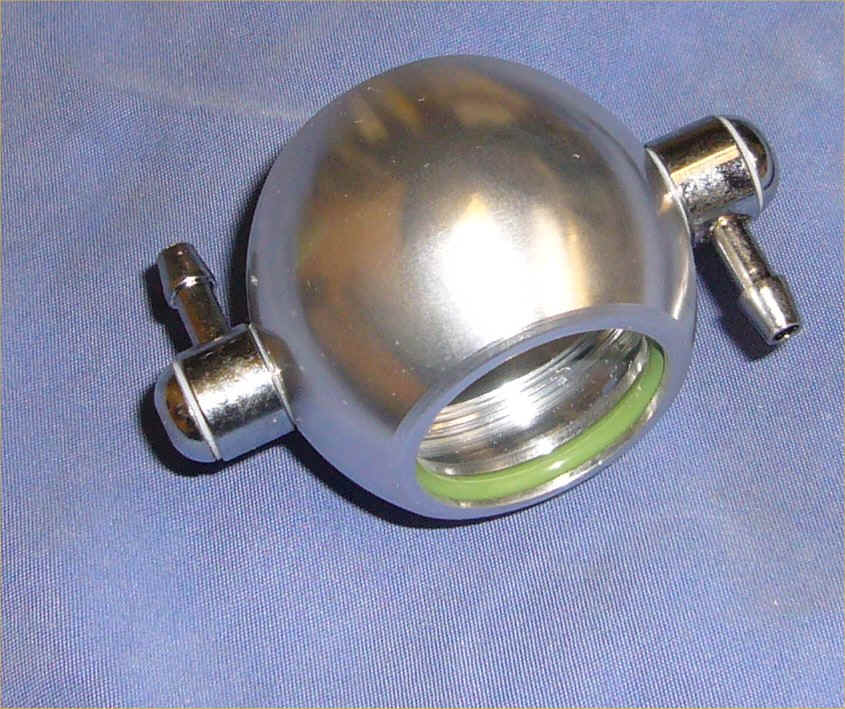

| CS23A For 22mm
header. Lightweight competition stainless steel (brushed finish) pipe
with integral watercooled
adapter that has 2 internal silicone o-rings and waterchannel that
slides over the header to give a sliding watercooled joint. No other
coupler such as teflon or silicone is needed and in normal use the
internal o-rings will last for many hours.
Dave Marles Designed |
|
£129.00
|
| CS24A For 25.4mm (1") header. Lightweight
competition stainless steel (brushed finish) pipe
with integral watercooled
adapter that has 2 internal silicone o-rings and waterchannel that
slides over the header to give a sliding watercooled joint. No other
coupler such as teflon or silicone is needed and in normal use the
internal o-rings will last for many hours.
Marles Designed |
|
£129.00
|
| CS25A
For 32 to 35cc engines using 25.4mm (1") header. Lightweight competition stainless steel (brushed finish) pipe
with integral watercooled
adapter that has 2 internal silicone o-rings and waterchannel that
slides over the header to give a sliding watercooled joint. No other
coupler such as teflon or silicone is needed and in normal use the
internal o-rings will last for many hours.
Marles Designed |
|
£135.00
|

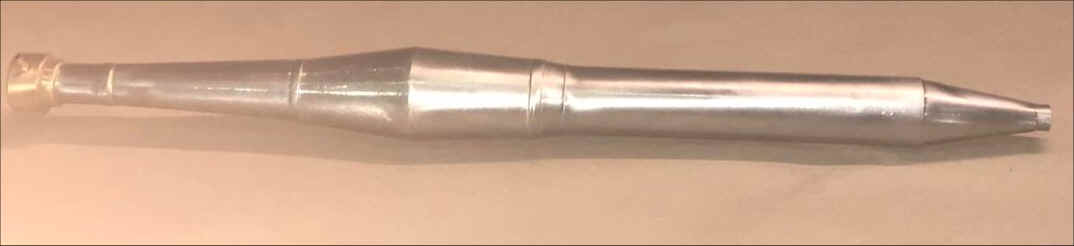

| CSTK1
For 22mm
header. Special multistage tuned pipe designed and developed by us
for the Tiger King Reed engine but now being used on the side
exhaust Tiger King 27cc and 29 cc tuned engines. The most
powerful pipe being made. Lightweight ultimate competition stainless steel (brushed finish) pipe
with integral watercooled
adapter that has 2 internal silicone o-rings and waterchannel that
slides over the header to give a sliding watercooled joint. No other
coupler such as teflon or silicone is needed and in normal use the
internal o-rings will last for many hours.
Dave Marles Designed.
Marles Designed |
pics to follow |
£149.00
|

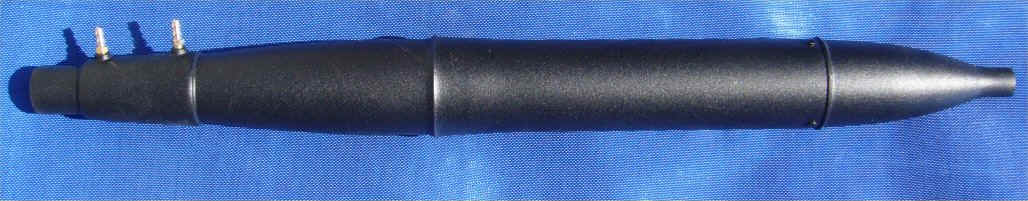

CS26
Stainless steel long silenced
pipe for up to 29cc gas engines.
The front pipe is
7/8" id (22mm) and will fit over most headers,
and has a built in watercooled joiner that has 2 internal silicone o-rings
and water channel that slides over the 22mm (7/8") header to give a sliding
watercooled joint. |
 |
£74.95
|

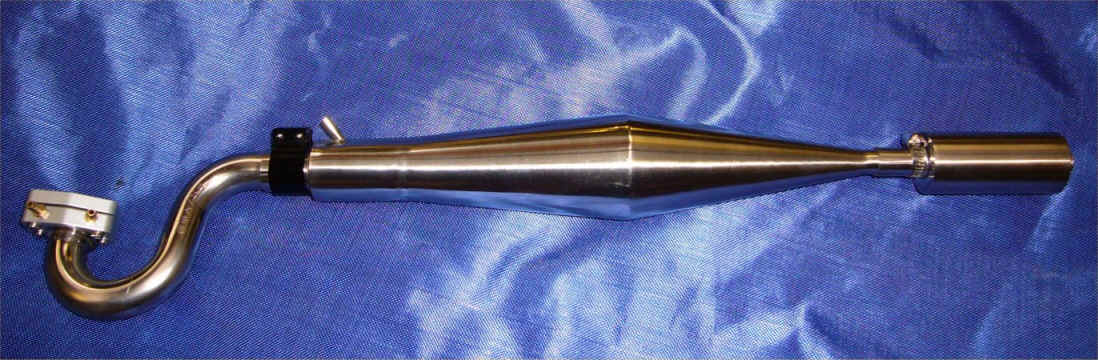

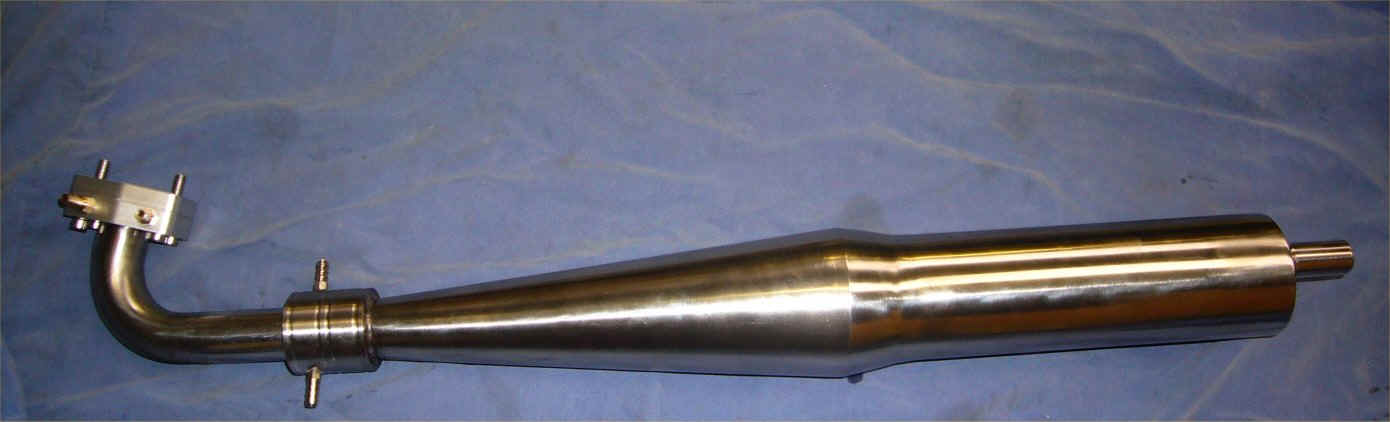

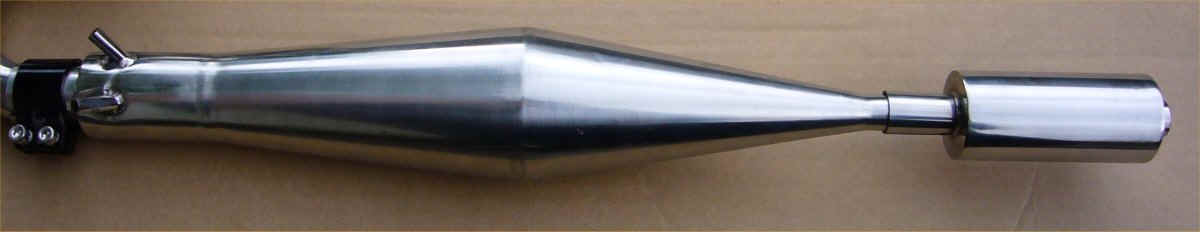

| CS28Stainless
steel watercooled tuned pipe with built in silencer and
watercooled sliding coupler. Pipe length is adjustable but with
this wrap forward type manifold can be fitted inside many mono
boats. Fits over 22mm / 7/8" header pipes. |
  |
£69.95
|

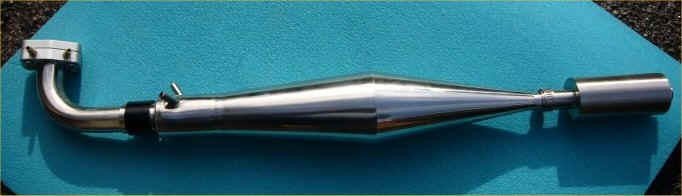

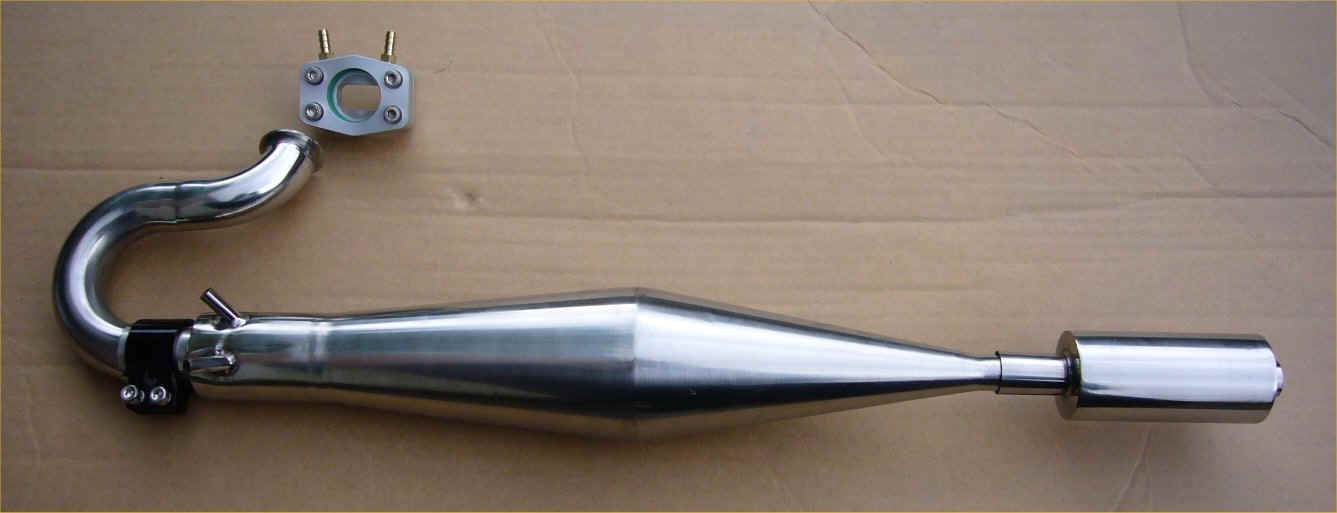

| CS29
Stainless
steel full kit of wrap forward watercooled manifold and watercooled stainless
steel tuned pipe with silencer for deepv boats. Pipe length is adjustable.
22mm header |
 |
£83.95
|

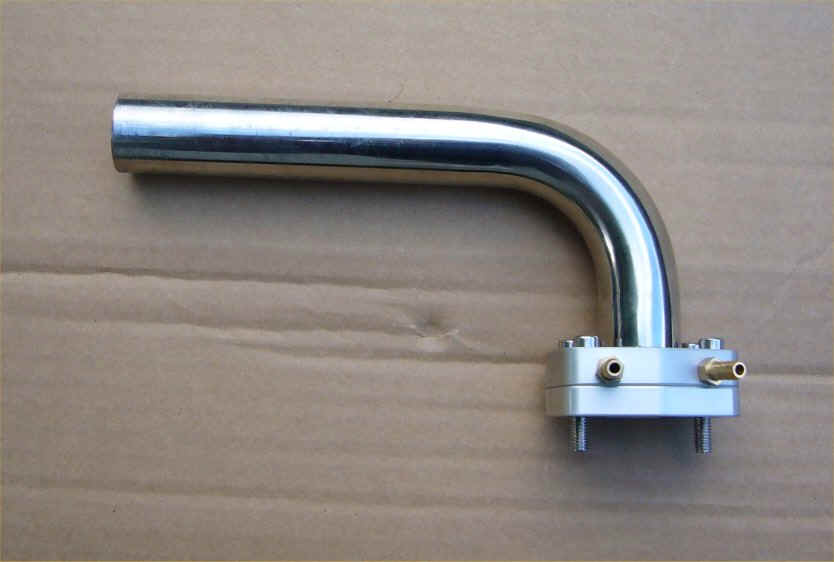

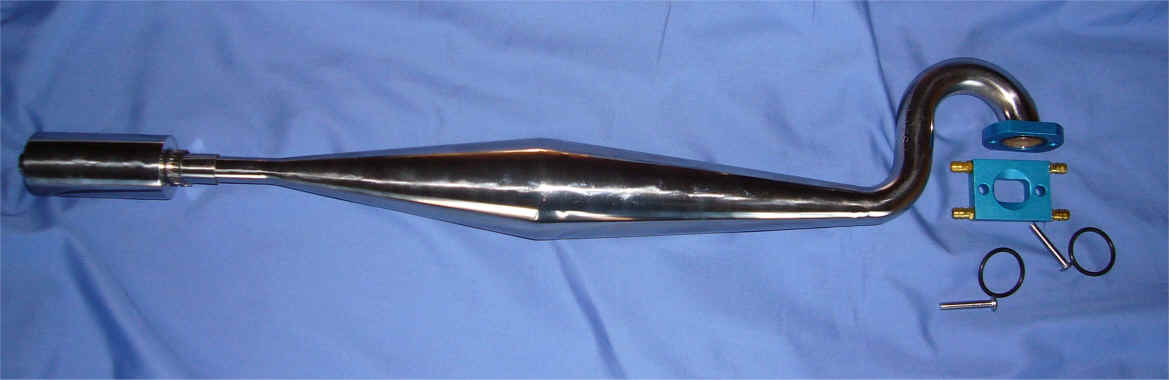

| CS30
Stainless
steel full kit of 90 degree watercooled manifold and watercooled stainless
steel tuned pipe with silencer. Pipe length is adjustable. from
exhaust flange to centreline of pipe is approximately 54mm. 22mm
header |
 |
£83.95
|
| CS31
Stainless
steel full kit of watercooled Wrap To Centre (WTC) manifold and
watercooled stainless
steel tuned pipe with silencer. Pipe length is adjustable.
22mm header |
 |
£83.95
|
| CS40
Stainless steel silencer.
Fits over 14mm pipe. |
 |
£15.95
|

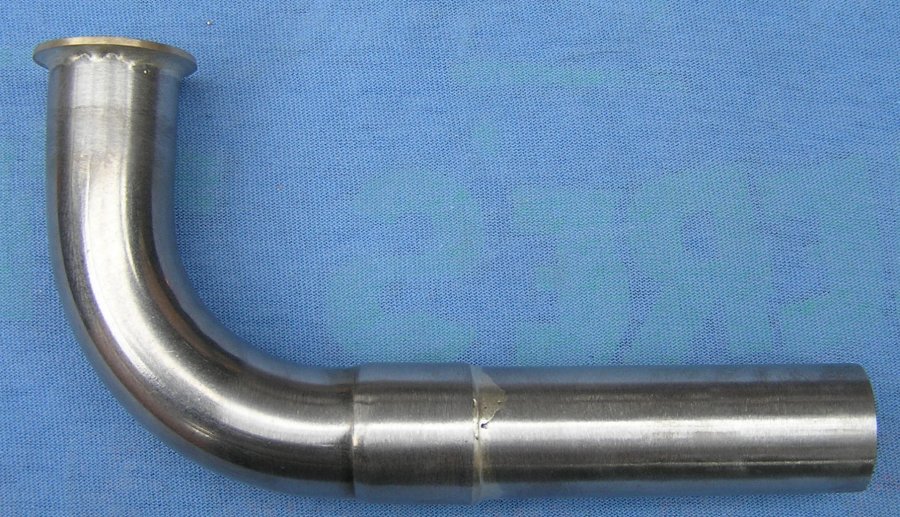

| CS43

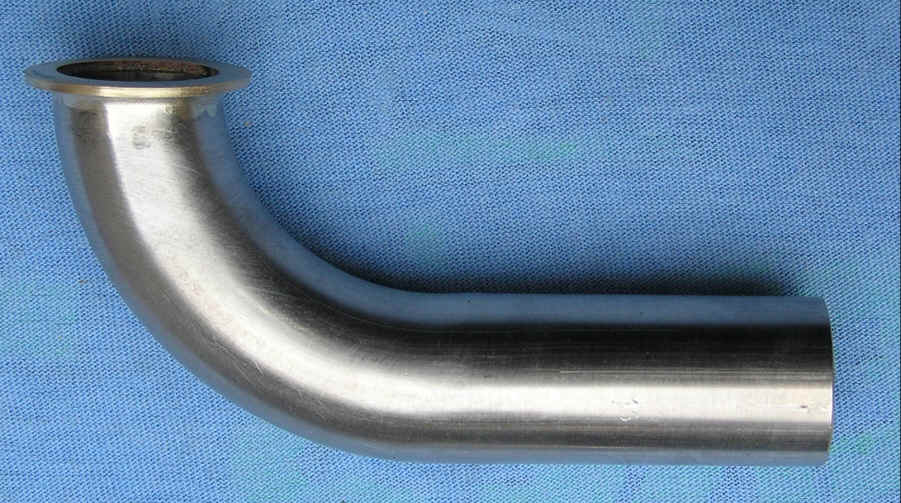

90 degree wide bend manifold header only. 22mm
diameter. Flange to outside of pipe (57mm) |
 |
£16.00
|

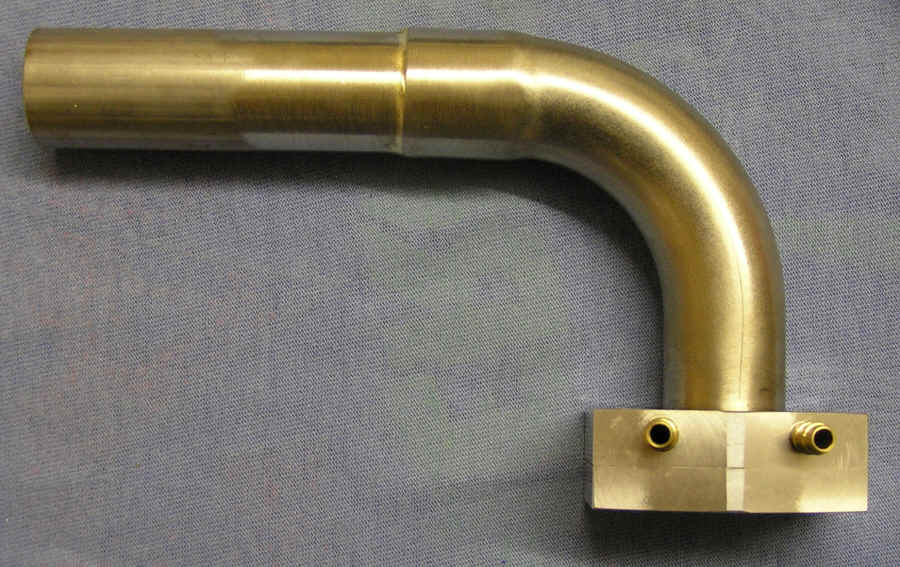

| CS45 90 degree
extra wide bend manifold header only. 22mm
diameter. Flange to outside of pipe (67mm) |
 |
£16.00
|
| CS46 90 degree
ultra wide bend manifold header only. 22mm diameter. Flange to outside of pipe 90mm |
|
£19.00
|
| CS47.
90 degree tight bend only. Lightweight stainless steel 22mm OD,
20.5mm id. flange to outsidee of pipe 49mm |
 |
£16.00
|
| CS49
100 degree bend only. Lightweight stainless steel 7/8" (22mm) OD, |
 |
£16.00
no stock
|
| CS51
105 degree stainless steel header pipe,
22mm od. Designed to bring the
tuned pipe to the center of the boat on cats. |
 |
£16.00
no stock
|
| CS53
Space saver header pipe only. Stainless pipe 22mm |
 |
£19.95
|

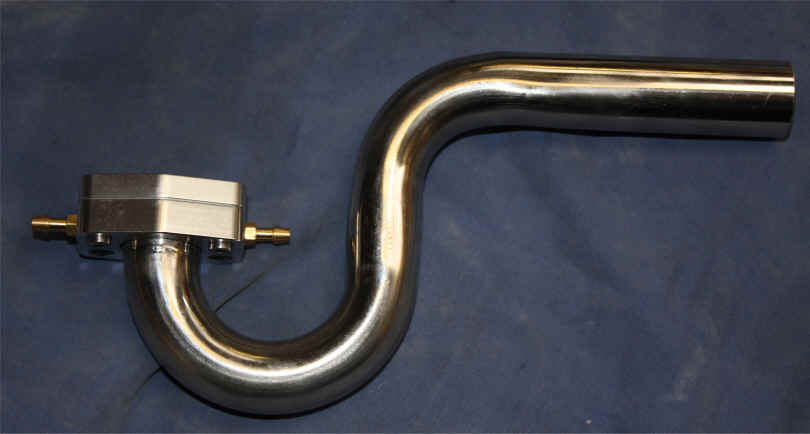

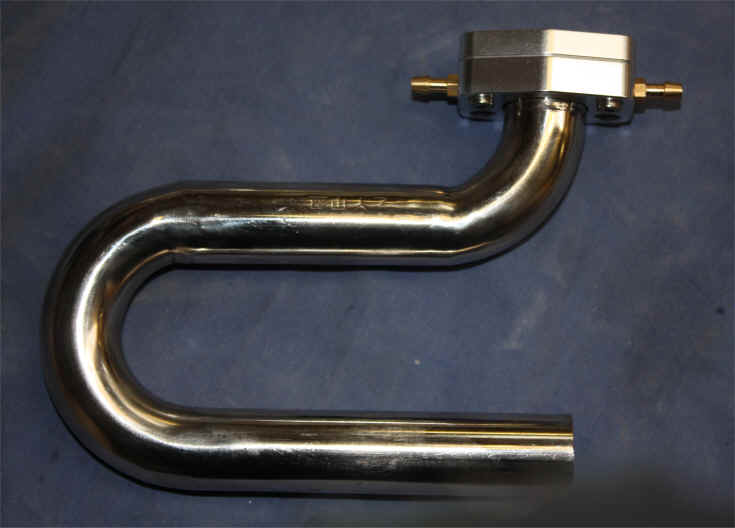

| CS55
Wrap to Centre manifold
stainless steel pipe only. 22mm od |
 |
£18.00
|
| CS56
90 degree header 57mm wide
with 15mm drop 22mm od |
 |
£16.00
|
| CS57 1",
25.4mm 90 degree wide bend manifold header only. 25 mm diameter. Flange to outside of pipe (57mm) |
|
£16.00
|
| CS58 1",
25.4mm 105 degree wide bend manifold header only. 25 mm diameter. |
|
£16.00
|
| CS59 1",
25mm 100 degree wide bend manifold header only. 25 mm diameter. |
|
£16.00
|
| CS60
1" 90 degree header 57mm wide
with 15mm drop 25.4 mm od |
|
£18.00
|

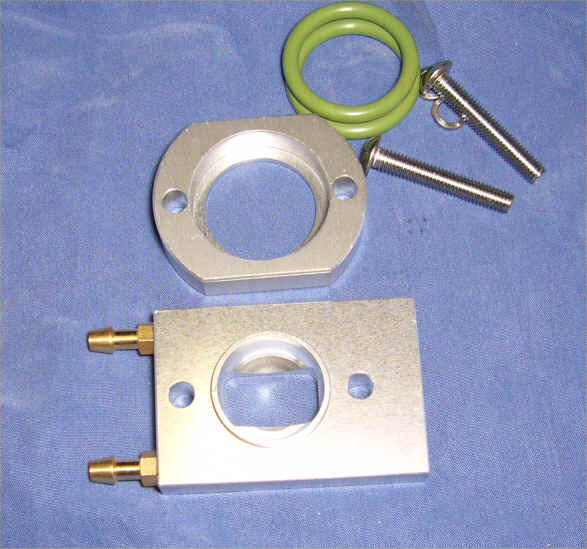

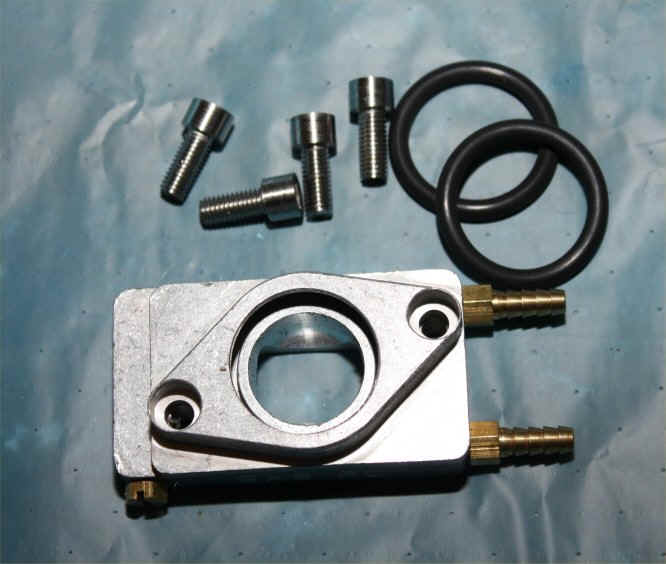

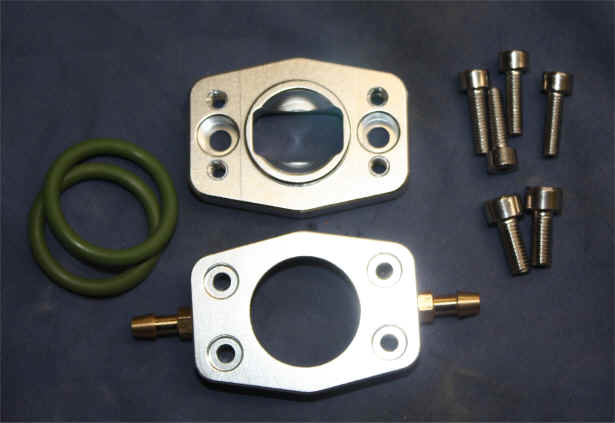

| CS62

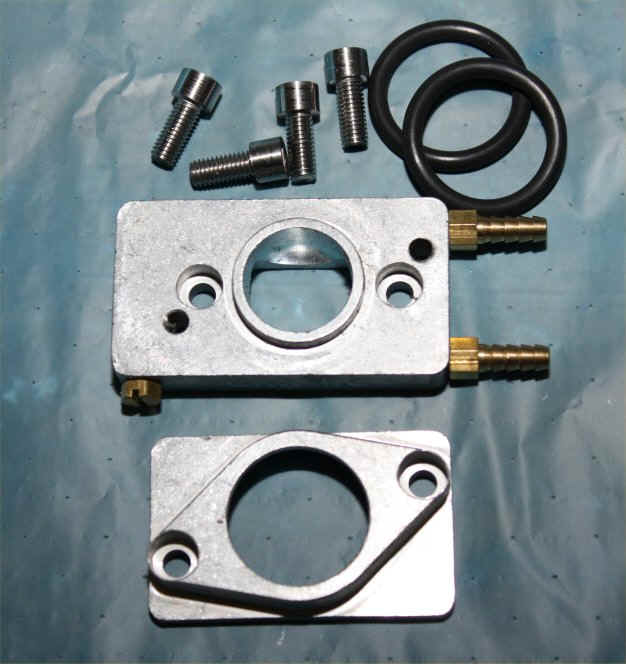

VS2 4 bolt. Watercooled no leak exhaust flange.For
ZENOAH 260PUM, 300PUM, 320PUM. CNC aluminium watercooled flange that does not allow the
possibility of a water leak into the exhaust gas. Fits 22mm 7/8" header pipes and includes one set of viton o-rings.. |
 |
£16.95
|
| CS63

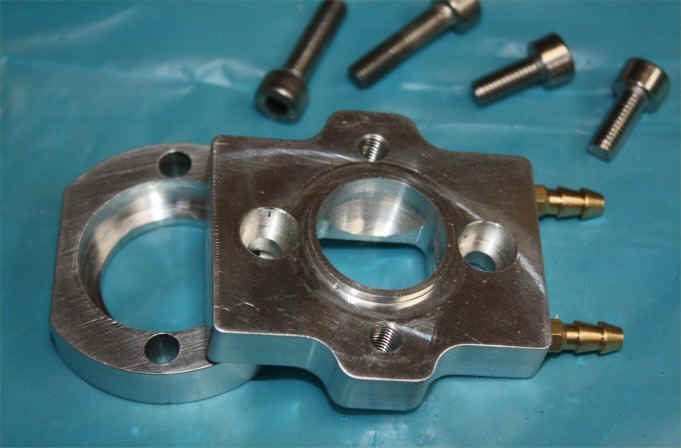

VS2 4 bolt. Watercooled aluminium exhaust flange. FOR TIGER KING
ONLY. This is matched to the special shaped exhaust port on the
Tiger King. CNC aluminium watercooled flange that does not allow the
possibility of a water leak into the exhaust gas. Fits 22mm 7/8" header pipes and includes one set of viton o-rings.. |
|
£17.95
|
| CS64
1", 25mm TYPE. Watercooled NO LEAK exhaust flange for 25mm HEADER
PIPES ONLY. For ZENOAH
260PUM, 300PUM, 320PUM.
CNC aluminium watercooled flange that does not allow the
possibility of a water leak into the exhaust gas, Incudes one set of viton
o-rings.. |
|
£15.95
|
| S64TK
1", 25mm TYPE. Watercooled NO LEAK exhaust flange for 25mm HEADER
PIPES ONLY on Tiger King
engines. CNC aluminium watercooled flange that does not allow the
possibility of a water leak into the exhaust gas, Incudes one set of viton
o-rings.. 1", 25mm TYPE. Watercooled NO LEAK exhaust flange for 25mm HEADER
PIPES ONLY on Tiger King
engines. CNC aluminium watercooled flange that does not allow the
possibility of a water leak into the exhaust gas, Incudes one set of viton
o-rings.. |
|
£17.95
|
| CS64A
Exhaust retainer for 25mm
tuned pipes, clamps onto
header and has 2 brackets to attach to nipples. CNC aluminium with
o-rings etc. |
 |
£9.95
|
| CS65
6 x Spare
3.5mm x 25mm i.d. silicone o-rings to fit all of the the 25.4mm
(1") watercooled tuned pipes numbers CS24A, CS25A 6 pieces. |
 |
£5.95
|
| CS66
Spare high temperature, 25mm (1") i.d., (3.5mm)
section hard wearing VITON o-rings to fit
the 25mm CS64 VS3 no leak flange. 6 pieces |
. |
£5.95
|
| CS67
Exhaust mounting bracket for
mono's cats and hydros. CNC machined aluminium. |
 |
£13.95
|
| CS69
Exhaust retainer for 22mm
tuned pipes, clamps onto
header and has 2 brackets to attach to nipples. CNC aluminium with
o-rings etc. |
|
£7.95
|
| CS75
Exhaust mounting exit CS28, 16mm id, CNC machined aluminium |
 |
£5.95
|
| CS76
Exhaust mounting bracket for CS23A gas pipe and CS5 15cc nitro
pipe, 40mm id, CNC machined aluminium with
rubber mounts. |
 |
no stock
£15.50
|
| CS77
Exhaust horizontal mounting bracket for CS28 gas pipe , 50mm id, CNC machined aluminium with
rubber mounts. |
|
no stock
£14.50
|
| CS78

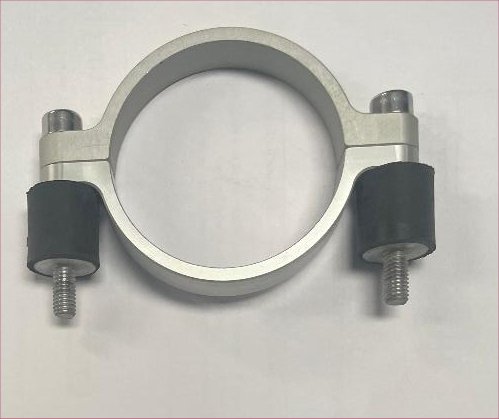

Exhaust mounting bracket 36mm id, CNC machined aluminium with
rubber mounts. |
 |
£16.95
|
| CS79
Exhaust mounting bracket for CS26, 45mm id, CNC machined aluminium with
rubber mounts. |
|
£21.95
|
| CS80
Exhaust mounting bracket for CS23A, 40mm id, CNC machined aluminium with
rubber mounts. |
|
£18.95
|
| CS81
Exhaust mounting bracket 45mm id, CNC machined aluminium with
rubber mounts. Suitable for CS28, CS29, CS30, CS31 |
 |
£7.95
|
| CS82
Exhaust mounting bracket 50mm id, CNC machined aluminium with
rubber mounts. Suitable for CS28, CS29, CS30, CS31 |
|
£7.95
|
| CS90
Spare 3.5mm x 22mm i.d. silicone o-rings to fit all of the the 22mm watercooled
headers plus tuned pipes numbers CS23A,CS24A CS26, CS33, CS34. 6 pieces. |
|
£6.95
|
| CS94
Spare high temperature, 22mm i.d., (3.5mm)
section hard wearing VITON o-rings to fit
the 22mm watercooled header and CS61 VS3 no leak flange. 6 pieces |
. |
£6.95
|
| CS95
Spare high temperature, 22mm i.d., (2.4mm) section hard wearing VITON o-rings to fit
some exhausts.. 6 pieces CS61 VS2 No Leak manifold uses 1 of
these and 1 of CS74. |
. |
£6.95
|
| CS96
Spare high temperature, 22mm i.d., (3mm) section hard wearing VITON o-rings to fit
22mm exhaust manifolds.. 6 pieces |
. |
£6.95
|
