FSRV Model Boats   Gas Tuned Pipes    Tiger King engines  Kraken mono   Zenoah Marine Engines   Flexishafts

SOLID PROPSHAFTS ASSEMBLIES

SOLID PROPSHAFTS RUDDERS SUBMERGED COUPLINGS  SUBMERGED  ENGINE MOUNTS BRASS COUPLERS CONNECTORS


This section contains Rubber couplings, huco type and Kalistratov couplings plus ballraced prop shafts all with a sealed ballrace, lead/teflon bush and grease nipple. The propeller shafts are stainless steel with  M5 threads for the props. Skegs are supplied for the shafts. The quiet rubber mounts with silentbloc rubbers will reduce vibration and noise and allow the model engine to be easily fitted and removed. The rudders are all stainless steel and waterproof. The rudder (tiller) arms are strong and mostly double sided.
.  PROP SHAFTS

.

.

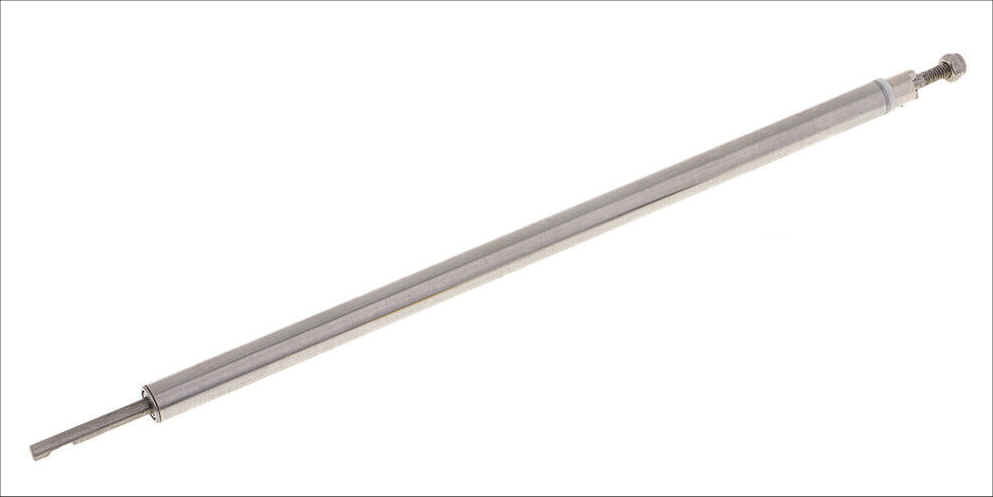

BR78 4mm propshaft assembly , tube length 150mm, stainless steel 4mm inner shaft suitable for M4 threaded props or dog drive 4mm props. Tube is stainless steel and fitted with bronze bushes. Includes dog drive.  wpe88.jpg (20549 bytes)
11.95
BR79 Long 5mm propshaft assembly , tube length 275mm, stainless steel 5mm inner shaft has one end 5mm and the other end M5 for threaded props. Tube is stainless steel and fitted with bronze bushes.   wpe88.jpg (20549 bytes)
21.95
BR80 Long 5mm propshaft assembly , tube length 300mm, stainless steel 5mm inner shaft has one end 5mm and the other end M5 for threaded props. Tube is stainless steel and fitted with bronze bushes.   wpe88.jpg (20549 bytes)
23.95
BR81 Long 5mm propshaft assembly , tube length 350mm, stainless steel 5mm inner shaft has one end 5mm and the other end M5 for threaded props. Tube is stainless steel and fitted with bronze bushes.   wpe88.jpg (20549 bytes)
25.95
BR82 Long 5mm propshaft assembly , tube length 400mm, stainless steel 5mm inner shaft has one end 5mm and the other end M5 for threaded props. Tube is stainless steel and fitted with bronze bushes.   wpe88.jpg (20549 bytes)
26.95
BR83 Long 5mm propshaft assembly , tube length 450mm, stainless steel 5mm inner shaft has one end 5mm and the other end M5 for threaded props. Tube is stainless steel and fitted with bronze bushes.   wpe88.jpg (20549 bytes)
27.95

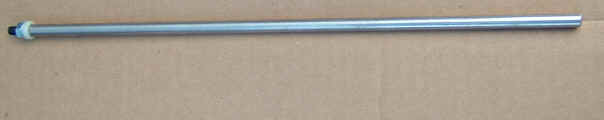

BR98    SPARE  accurate 5mm hard and straight toughened steel  propeller shaft 400mm long threaded M5 on one end. Very strong and very straight.


9.00

BR21 Spare 16mm od x 5mm id stainless steel ballrace  for BR69/70/71/72 propeller shaft.



2.75
BR21A Spare 19mm od x 5mm id stainless steel ballrace  for BR69/70/71/72 propeller shaft.



2.75
BR22 Spare 5mm TEFLON thrust washers  for all 5mm ballrace shafts  (10)
2.95
BR23A  4 x Spare 5mm bore x 7mm od Lead/teflon bushes for all ballraced shafts   4 pcs.



2.95
. COMPETITION BALLRACE propshaft    Click here to go to the FSRV site  FSRV SHAFT PARTS . .
