Brushless Watercooled Motors
 Fast Electric Boats    Batteries

Brushless  motors and ESC Combos Brushless watercooled motors Brushless and brushed rc watercooled ESC Brushless marine motor mounts Brushless waterjackets Wire, Heatshrink, Connectors Brushless program cards

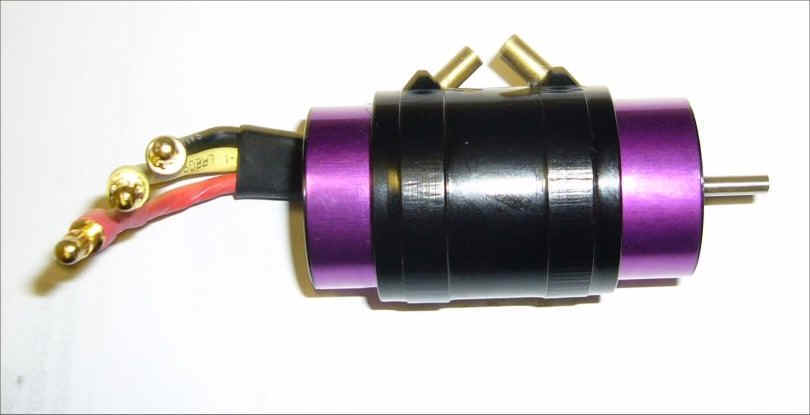

BL2  Brushless watercooled motor 2949. 2890KV. High torque for this size of motor. 1000 watts. For 8.4 to 18 volts. 2S to  4S lipo or 7 to 10 Nicad or NIMH packs. 29mm motor diameter, 33mm overall diameter, 48mm long. 3.2mm shaft diameter  Equivalent size to a r 380 to 550 size brushed motor but MUCH more powerful.     wpe123.jpg (22657 bytes)

48.95



BL3  Brushless watercooled motor 2968. 2890KV. High torque for this size of motor. 1600 watts. For 8.4 to 18 volts. 2S to  4S lipo or 7 to 10 Nicad or NIMH packs. 29mm motor diameter, 33mm overall diameter, 68mm long. 4mm shaft diameter  Equivalent size to a r 380 to 550 size brushed motor but MUCH more powerful.     wpe123.jpg (22657 bytes)

55.50



BL4   Brushless Watercooled Motor  3673  2190kv For 8.4 to 22 volts. 2200W. 3S to  6S lipo or 7 to 16 Nicad or NIMH packs. Mounting hole spacing of 19mm or 25mm. Motor diameter 36mm, waterjacket 46mm diameter, length 74mm. shaft diameter 5mm. Max Amps 100
   Use with 70 to 120 Amp speed controller.
57.95
BL4A   Brushless Watercooled Motor  SSS 3682  1650kv For 8.4 to 22 volts. 2500W. Upgrade for Genesis 900. 3S to  6S lipo or 7 to 16 Nicad or NIMH packs. Mounting hole spacing of 19mm or 25mm. Motor diameter 36mm, waterjacket 46mm diameter, length 82mm. shaft diameter 5mm. Max Amps 100
   Use with 70 to 120 Amp speed controller.
71.95
BL5   Brushless Watercooled Motor  SSS 3682  1150kv For 8.4 to 22 volts. 2500W. For submerged scale or any boat with propeller under the hull and forward of the transom. Lower kv to give more torque for a sensible sized propeller 3S to  6S lipo or 7 to 16 Nicad or NIMH packs. Mounting hole spacing of 19mm or 25mm. Motor diameter 36mm, waterjacket 46mm diameter, length 82mm. shaft diameter 5mm. Max Amps 100
   Use with 70 to 120 Amp speed controller.
71.95
BL6

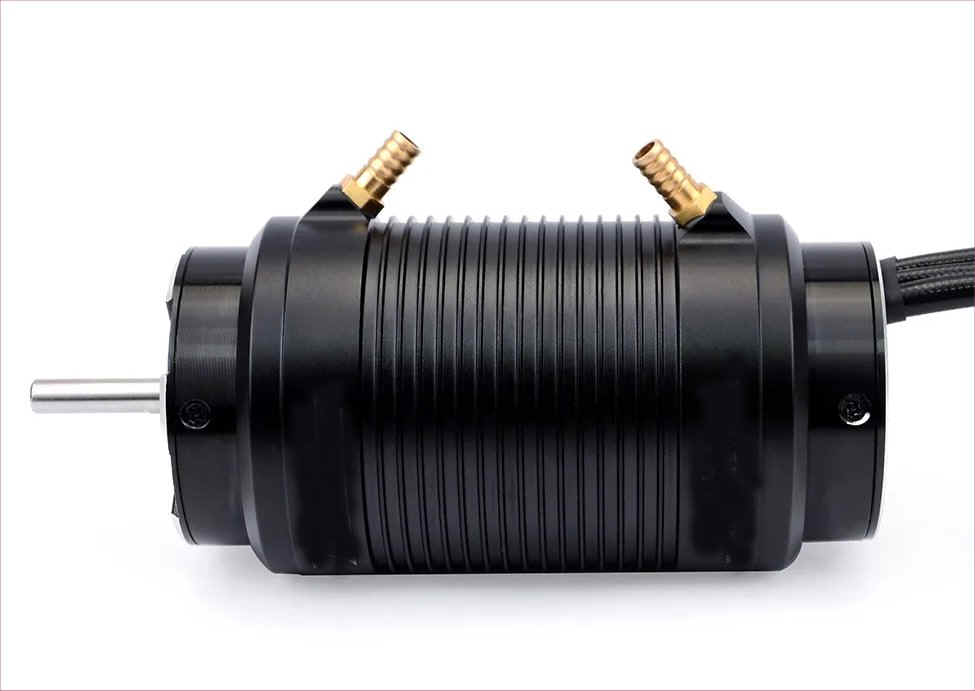

Powerful 4083 brushless watercooled motor 4.8hp,  1890KV, 3700Watts, electric motor 40mm motor diameter, 83mm long,  with 25mm  hole centres for mounting holes.  Use with a 150 Amp  ESC (speed controller)

Max Amps: 160A
Max Volt: 30V
Max Watts: 3700
Rpm/V: 1890kv
Dimension: 40mm x 83mm
Length of extend Shaft: 16mm
Shaft diameter:
5mm
Weight: 446gms
89.00
BL7 Big motor 4092  1580KV 6 BHP. 4200W. Max rpm 50,000, 40mm diameter , 92mm long . shaft 5mm.

Suitable for surface  drive boats up to 52" and submerged boats up to 55"".





BLM7 Monster 7.3 horsepower brushless watercooled SSS 5693 brushless motor. RECOMMENDED for DEEP V's, Mono's and cats when replacing a gas motor .  Brushless 56mm diameter motor, 93mm long 820KV For up to 12S lipo (2 x 6S). Mounting hole spacing of 29mm, shaft diameter 8mm. Max Amps 290.  5500 watts (7.3bhp)
   Use with 180 to 300 Amp speed controller.

134.95
BL7MB Monster 10 horsepower brushless watercooled SSS 56115 500KV brushless motor. RECOMMENDED for DEEP V's, Mono's and cats when replacing a gas motor .  Brushless 56mm diameter motor, 105mm long 500KV For up to 12S lipo (2 x 6S). Mounting hole spacing of 29mm, shaft diameter 10mm. Max Amps 290.  7800 watts (10bhp)
   Use with 220Amp  or higher Amp speed controller.

159.95
