Brushless Watercooled Motors and ESC

Fast Electric Boats Batteries

Brushless watercooled motors and marine watercooled  ESC (electronic speed controllers)  for rc model boats of all sizes.  Program cards for brushless marine ESC and for brushless motor and esc combo's. Most of these motors are brushless inrunners which are suited to high speed boat types. We also have motors suitable for semiscale boats, such as Perkasa,  Huntsman,  Sea Queen and scale boats such as tugs, fishing boats etc.

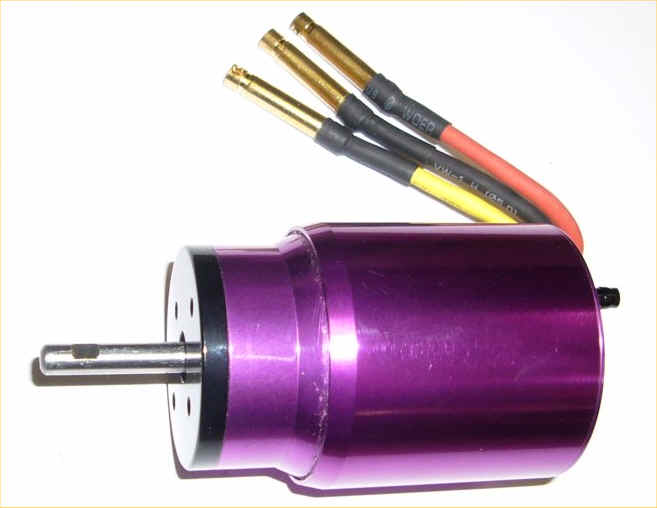

BL2  Brushless watercooled motor 2949. 2890KV. High torque for this size of motor. 1000 watts. For 8.4 to 18 volts. 2S to  4S lipo or 7 to 10 Nicad or NIMH packs. 29mm motor diameter, 33mm overall diameter, 48mm long. 3.2mm shaft diameter  Equivalent size to a r 380 to 550 size brushed motor but MUCH more powerful.     wpe123.jpg (22657 bytes)

48.95



BL3  Brushless watercooled motor 2968. 2890KV. High torque for this size of motor. 1600 watts. For 8.4 to 18 volts. 2S to  4S lipo or 7 to 10 Nicad or NIMH packs. 29mm motor diameter, 33mm overall diameter, 68mm long. 4mm shaft diameter  Equivalent size to a r 380 to 550 size brushed motor but MUCH more powerful.     wpe123.jpg (22657 bytes)

55.50

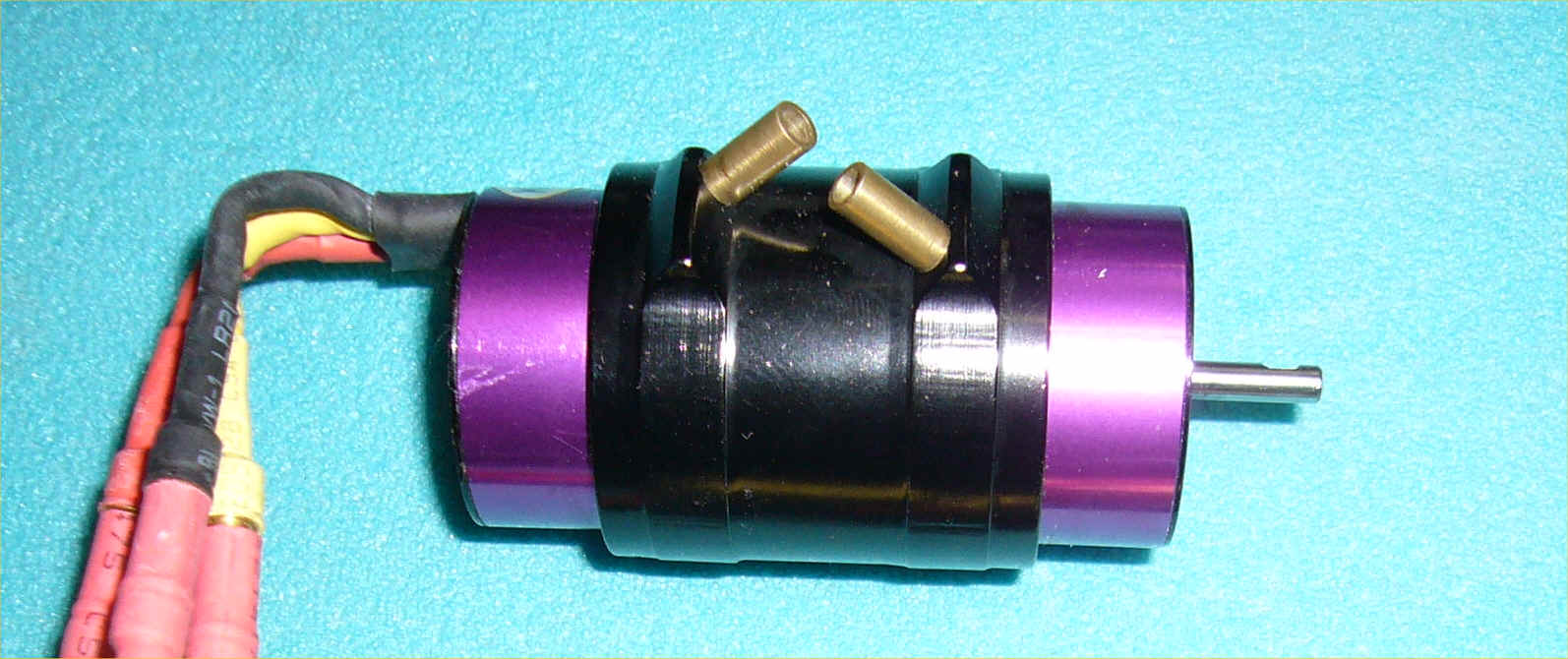

BL4   Brushless Watercooled Motor  3673  2190kv For 8.4 to 22 volts. 2200W. 3S to  6S lipo or 7 to 16 Nicad or NIMH packs. Mounting hole spacing of 19mm or 25mm. Motor diameter 36mm, waterjacket 46mm diameter, length 74mm. shaft diameter 5mm. Max Amps 100
   Use with 70 to 120 Amp speed controller.
57.95
BL4A   Brushless Watercooled Motor  SSS 3682  1650kv For 8.4 to 22 volts. 2500W. Upgrade for Genesis 900. 3S to  6S lipo or 7 to 16 Nicad or NIMH packs. Mounting hole spacing of 19mm or 25mm. Motor diameter 36mm, waterjacket 46mm diameter, length 82mm. shaft diameter 5mm. Max Amps 100
   Use with 70 to 120 Amp speed controller.
71.95
BL5   Brushless Watercooled Motor  SSS 3682  1150kv For 8.4 to 22 volts. 2500W. For submerged scale or any boat with propeller under the hull and forward of the transom. Lower kv to give more torque for a sensible sized propeller 3S to  6S lipo or 7 to 16 Nicad or NIMH packs. Mounting hole spacing of 19mm or 25mm. Motor diameter 36mm, waterjacket 46mm diameter, length 82mm. shaft diameter 5mm. Max Amps 100
   Use with 70 to 120 Amp speed controller.
71.95
BL6

Powerful 4083 brushless watercooled motor 4.8hp,  1890KV, 3700Watts, electric motor 40mm motor diameter, 83mm long,  with 25mm  hole centres for mounting holes.  Use with a 150 Amp  ESC (speed controller)

Max Amps: 160A
Max Volt: 30V
Max Watts: 3700
Rpm/V: 1890kv
Dimension: 40mm x 83mm
Length of extend Shaft: 16mm
Shaft diameter:
5mm
Weight: 446gms
89.00
BL7 Monster 7.3 horsepower brushless watercooled SSS 5693 brushless motor. RECOMMENDED for DEEP V's, Mono's and cats when replacing a gas motor .  Brushless 56mm diameter motor, 93mm long 820KV For up to 12S lipo (2 x 6S). Mounting hole spacing of 29mm, shaft diameter 8mm. Max Amps 290.  5500 watts (7.3bhp)
   Use with 180 to 300 Amp speed controller.

134.95
BL7B Monster 10 horsepower brushless watercooled SSS 56115 500KV brushless motor. RECOMMENDED for DEEP V's, Mono's and cats when replacing a gas motor .  Brushless 56mm diameter motor, 105mm long 500KV For up to 12S lipo (2 x 6S). Mounting hole spacing of 29mm, shaft diameter 10mm. Max Amps 290.  7800 watts (10bhp)
   Use with 220Amp  or higher Amp speed controller.

159.95

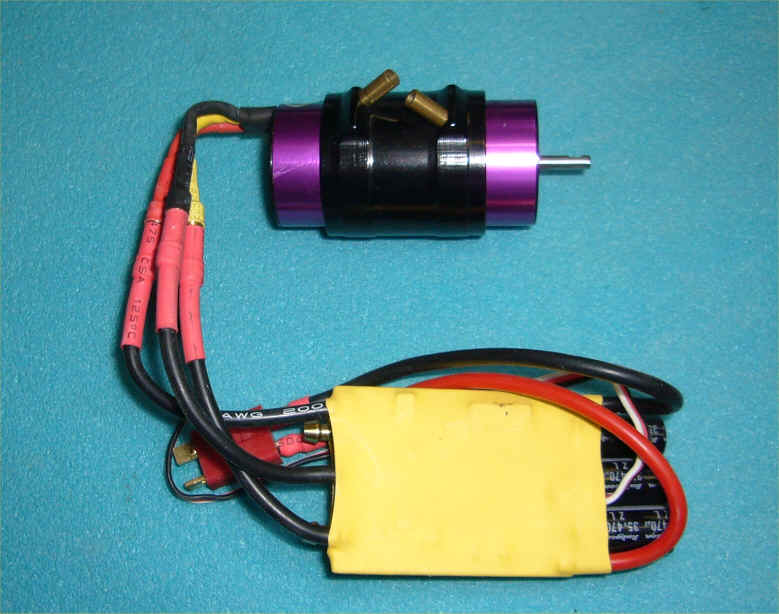

BL8 Brushless watercooled COMBO of 4 pole 2949 motor  with 60 amp  ESC speed controller that has BEC. 2890 KV  motor. For 8.4 to 18 volts. 2S to 4S lipo or 7 to 10 Nicad or NIMH packs. 3.2mm shaft diameter  motor is 33m overall diameter and 58mm long. Equivalent size to a  380 to 550 size motor but MUCH more powerful. ESC may look different to the picture.
Suitable for powerboats of up to 750mm
.    wpe98.jpg (113175 bytes)

89.95



BL8A Brushless watercooled COMBO of 4 pole 2968 motor  with 80 amp  ESC speed controller that has BEC. 2890 KV  motor. For 8.4 to 18 volts. 2S to 4S lipo or 7 to 10 Nicad or NIMH packs. 4mm shaft diameter  motor is 33mm overall diameter and 68mm long. Equivalent size to a  380 to 550 size motor but MUCH more powerful. ESC may look different to the picture.
Suitable for powerboats of up to 850mm
.    wpe98.jpg (113175 bytes)

99.95



BL9 Brushless watercooled COMBO of 3673 2190kv motor and 90 Amp ESC.  For 8.4 to 23 volts.Up to  6S lipo.  Mounting hole spacing of 19mm or 25mm. Motor diameter 36mm,  length 73mm. shaft diameter 5mm. Max Amps 85 complete with matching 90AMP  controller ESC Colour of the motor may vary from the pic.
Suitable for powerboats  approximately 750mm to 1000mm in length
109.95
BL10 Brushless watercooled COMBO of 4083 1890kv motor and 150 Amp ESC controller.  For 8.4 to 23 volts.Up to  6S lipo.  Mounting hole spacing of 19mm or 25mm. Motor diameter 40mm,  length 82mm. shaft diameter 5mm. Max Amps 150 complete with matching 150AMP  controller ESC. Colour of the motor may vary from the pic.
Suitable for powerboats approximately 1000mm to 1200mm
149.95
BL10A Brushless watercooled COMBO of 4083 1100kv motor and 150 Amp ESC controller.  For 8.4 to 23 volts.Up to  6S lipo.  Mounting hole spacing of 19mm or 25mm. Motor diameter 40mm,  length 82mm. shaft diameter 5mm. Max Amps 150 complete with matching 150AMP  controller ESC. Colour of the motor may vary from the pic.
Suitable for 45 to 55 inch submerged drive boats such as Perkasa, Sea Queen and other scale and semiscale boats.
149.95
BL11 Brushless watercooled COMBO of SSS 5693 820kv motor and 180Amp ESC controller.  For 8.4 to 30 volts. Up to  8S lipo.    Brushless SSS 56mm diameter motor, 93mm long, . Mounting hole spacing of 29mm, shaft diameter 8mm. Max Amps 290.  5500 watts (7.3bhp)
Suitable for powerboats  approximately 1200mm to 1400mm in length.

.    wpeD5.jpg (34779 bytes)
239.00

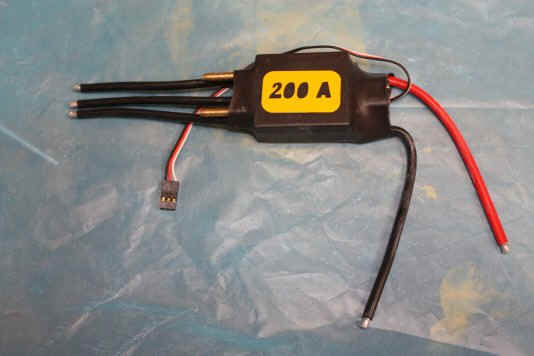

BL11A Brushless watercooled COMBO of SSS 5693 820kv motor and 200Amp ESC controller.  For 8.4 to 30 volts. Up to  8S lipo.    Brushless SSS 56mm diameter motor, 93mm long, . Mounting hole spacing of 29mm, shaft diameter 8mm. Max Amps 290.  5500 watts (7.3bhp)
Suitable for powerboats  approximately 1200mm to 1400mm in length.


259.00
BL12 Brushless watercooled COMBO of SSS 56115 500kv to 650kv motor and 340Amp ESC controller with 1000A burst.  For 8.4 to 50 volts.for 6S  to  16S lipo.    Brushless SSS 56mm diameter motor, 114mm long, . Mounting hole spacing of 29mm, shaft diameter 10mm. Max Amps 290.  7800 watts (10HP)
Suitable for powerboats  approximately  50" (1300mm) to 62" (1600mm) or more in length.

419.00
BL13 Powerful high torque brushless outrunner motor, dedicated ESC speed controller for tug boats and scale working boats, submerged drive boats up  to 40"  Speed controller is fan cooled 60A with 300A momentary burst.  Motor is 42 50 brushless outrunner 490kv. This combination will run on 6 volt to 12 volt lead acid/gel batteries or lipos without overheating. Speed controller has forward and reverse.



.    wpeC6.jpg (41125 bytes)
77.95
BL17  TGY Brushless watercooled 50Amp Speed control (ESC)  with 90 Amp burst. complete with full instructions Battery (cell): 2-4S Lipo 6-18 Cells NiMH. Size 94x33x18, Weight: 81g

Forward or forward and reverse.

44.95
no stock
BL18  TGY Brushless watercooled 90Amp Speed control (ESC)
Constant Current: 90A
Burst Current: 180A
Resistance: .0007ohm
Battery: 2-6S Lipoly
BEC: 4A/6v
Motor Type: Sensorless Brushless
Size: 94 x 33 x 18mm
Weight: 91g

forward or forward and reverse.

49.95
BL21  RAIDER  Brushless watercooled 150Amp Speed control (ESC)
Constant Current: 150A
Burst Current: 300A
Resistance: .0007ohm
Battery: 2-6S Lipoly
BEC: 3A/6v
Motor Type: Sensorless Brushless
Size: 94 x 33 x 22mm
Weight: 115g

forward or forward and reverse.

79.95
BL28 R8E  HIGH PERFORMANCE and reliable Brushless watercooled 340Amp 3S to 16S  (11 volts 50 volts)Speed control (ESC)  Custom made for us.
Constant Current: 340A
Burst Current: 10
00A
Low voltage cutout goes to low speed for easy recovery

Battery 3-16S Lipo
Can be supplied Forward only or forward and reverse



295.00
BRU45 Brushed 45A esc with reverse, simple setting for forward and reverse or just forward. Picture may be slightly different to the item sent. wpe10A.jpg (23183 bytes)
16.95
BRU90 WATERCOOLED,Brushed 90A esc with reverse 480 amps burst current. wpeF9.jpg (16630 bytes)
26.95
BL50  Hobbyking marine only programming card. Not essential for programming HK ESC's but makes it easier to program. .wpe31.jpg (31066 bytes)
13.95
BL51  Turnigy marine Programming card. Not essential but makes it easier to program.  .
12.95
no stock
BL52  Raider marine ESC Programming card. Not essential but makes it easier to program.  .wpe74.jpg (43574 bytes)
18.95
EM123 Charger and balance charger  for Lipo, Life and NIMH batteries. works from mains or a 12volt battery. wpe6A.jpg (63981 bytes) 38.95
EM123 28mm inside diameter waterjacket for 28 series motors. .wpe9D.jpg (14637 bytes) 9.00
EM124 36mm inside diameter waterjacket for 36 series motors. .wpe9D.jpg (14637 bytes) 13.00
EM125 40mm inside diameter waterjacket for 40 series motors. .wpe9D.jpg (14637 bytes) 14.80
EM126 56mm inside diameter waterjacket for 56 series motors. .wpe9F.jpg (14637 bytes) 16.50
. . . .
