 MIRAGE 54


video of mirage 54

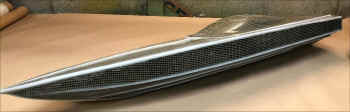

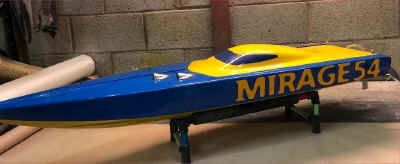

This is our new 27 to 30cc gas and 15cc nitro racing DeepV  that we designed and developed to race in Offshore races in UK. 54 ins 1370mm long long and normally fitted with 5" wooden rails although it can be supplied without.

All of our racing boats are made from epoxy and glass or carbon kevlar and are vacuum moulded with multiple layers of material. This gives a very light and strong moulding which is far better than normal fibreglass. Do not confuse these boats with normal fibreglass boats. These are top quality lightweight epoxy mouldings made with up to 5 layers of glass or  4 layers of glass one of carbon and  kevlar and slow setting epoxy resin which means no distortion, no gel coat cracks  and they are VERY strong. These boats are hand laid up in a ceramic mould. The mould and moulding are vacuum bagged and left in an oven for 16 hours at 50C and then post cured at 25C for 24 hours after removal from the mould.  They are then joined with kevlar or glass and again cured overnight in the oven. This makes for an extremely strong, stiff and lightweight racing boat. Carbon kevlar is incredibly difficult to damage. The engine tank cover is made from epoxy glass to prevent radio problems.

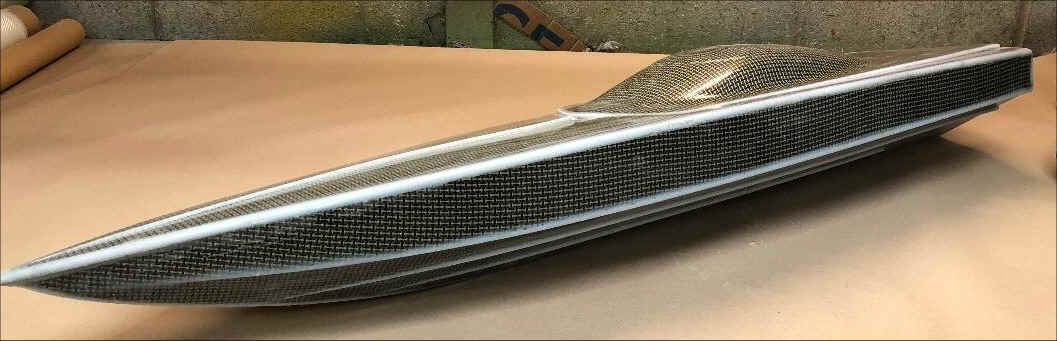

MIRAGE 54 (EK) Carbon/ Kevlar Epoxy with rails. Standard racing version of Mirage. Carbon/kevlar epoxy hull with rails fitted and  glass/epoxy engine cover. This is supplied unpainted with carbon/kevlar pattern hull and translucent engine cover


395.00
MIRAGE DEAL 1 KIT    Consists of Mirage  EK epoxy and carbon and kevlar vacuum joined boat, Zenoah  32cc Marine Engine, watercooled exhaust manifold, watercooled silenced stainless steel  CS28  tuned pipe, bellcrank type throttle linkage, quiet motor mounts, 1/4" flexishaft assembly including aluminium CNC strut, brackets, tube, drive dog, CNC machined wedge rudder assembly with 2 built in water pickups, 2 aluminium water outlets, 2 through hull nipples, large radio box with special rubber bellows and servo mount plate, big bore water silicone tube and tygon fuel tube, balanced and sharp metal blade  racing propeller, tube type aerial, rudder and throttle linkages, turn fins and tuned pipe mount.  This is top quality hardware not seen on any other boat kits. Hull is vacuumed epoxy/carbon kevlar, engine cover is vacuumed epoxy/glass. Normal price 1280.00  SPECIAL PRICE   995.00  995.00
MIRAGE DEAL 2 ARTR..  ALMOST READY TO RUN.  Motor and motor mounts installed plus coupling, shaft, tube, rudder, turn fins, strut, cowl locks, water outlets are all fitted. (some parts removed for shipping)  Consists of Mirage  EK epoxy and carbon and kevlar vacuum joined boat  fitted with Zenoah  32cc Marine Engine, watercooled exhaust manifold, watercooled silenced stainless steel  CS28  tuned pipe, bellcrank type throttle linkage, quiet motor mounts, 1/4" flexishaft assembly including aluminium CNC strut, brackets, tube, drive dog, CNC machined wedge rudder assembly with 2 built in water pickups, 2 aluminium water outlets, 2 through hull nipples, large radio box with special rubber bellows and servo mount plate, big bore water silicone tube and tygon fuel tube, balanced and sharp metal blade  racing propeller, tube type aerial, rudder and throttle linkages, turn fins and tuned pipe mount.  This is top quality hardware not seen on any other boat kits. Hull is vacuumed epoxy/carbon kevlar, engine cover is vacuumed epoxy/glass. Normal price 1380.00  VERY SPECIAL PRICE   1095.00
1095.0
MIRAGE DEAL 3 ARTR..  A Motor and motor mounts installed plus coupling, shaft, tube, rudder, turn fins, strut, cowl locks, water outlets are all fitted. (some parts removed for shipping)  Consists of Mirage  EK epoxy and carbon and kevlar vacuum joined boat  fitted with ZEN10 Tuned Zenoah  32cc Marine Engine, watercooled exhaust manifold, watercooled silenced stainless steel  tuned pipe, bellcrank type throttle linkage, quiet motor mounts, 1/4" flexishaft assembly including aluminium CNC strut, brackets, tube, drive dog, CNC machined wedge rudder assembly with 2 built in water pickups, 2 aluminium water outlets, 2 through hull nipples, large radio box with special rubber bellows and servo mount plate, big bore water silicone tube and tygon fuel tube, balanced and sharp metal blade  racing propeller, tube type aerial, rudder and throttle linkages, turn fins and tuned pipe mount.  This is top quality hardware not seen on any other boat kits. Hull is vacuumed epoxy/carbon kevlar, engine cover is vacuumed epoxy/glass. Normal price 1480.00  VERY SPECIAL PRICE   1195.00
1195.0
