 ORION 48 CATAMARAN
Home   Gas Tuned Pipes     Tiger King engines  Kraken mono

This is our new 27 to 30cc gas and 15cc nitro racing cat that we designed and developed to race in FSRO offshore and other vracing classes. 1210mm long 48" and normally fitted with 5" wooden rails although it can be supplied without.  This a full 48"  hull, unlike many large cats which have a long rear overhang and are actually much smaller.

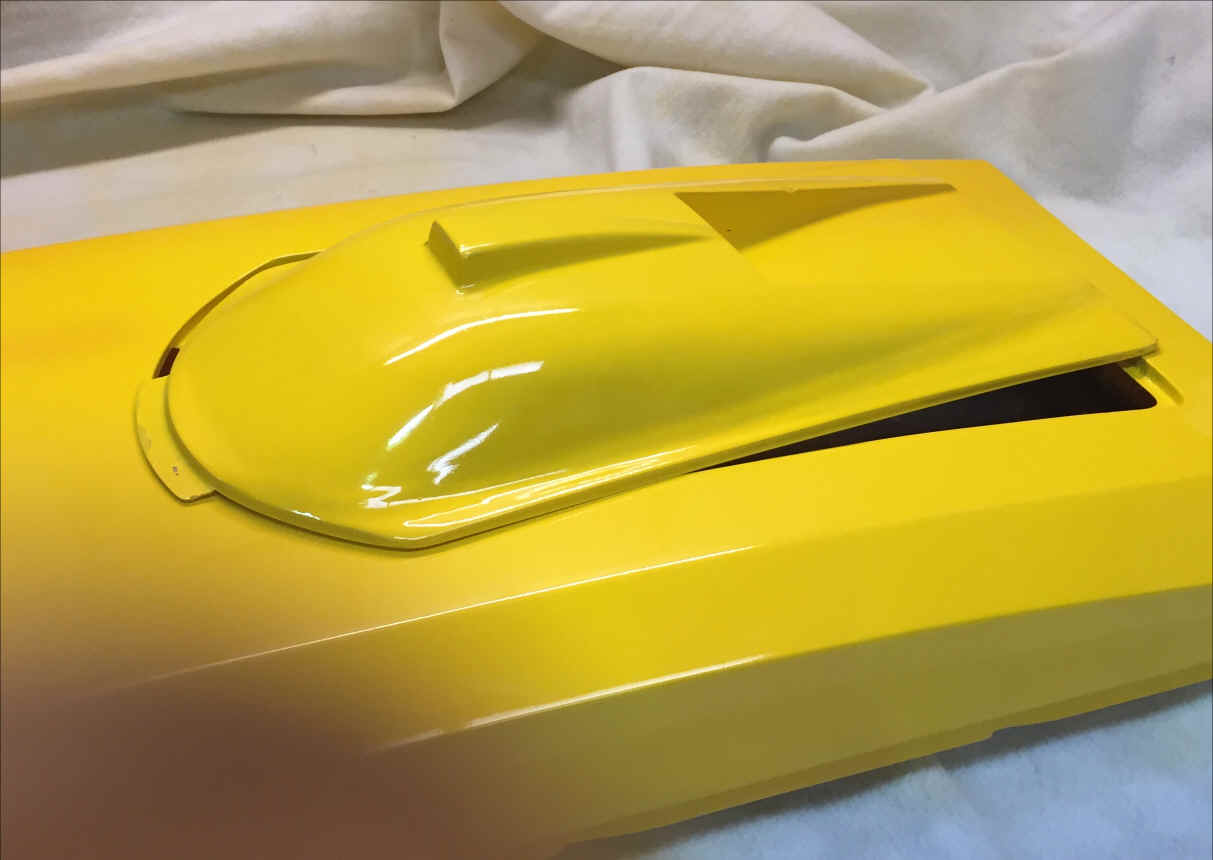

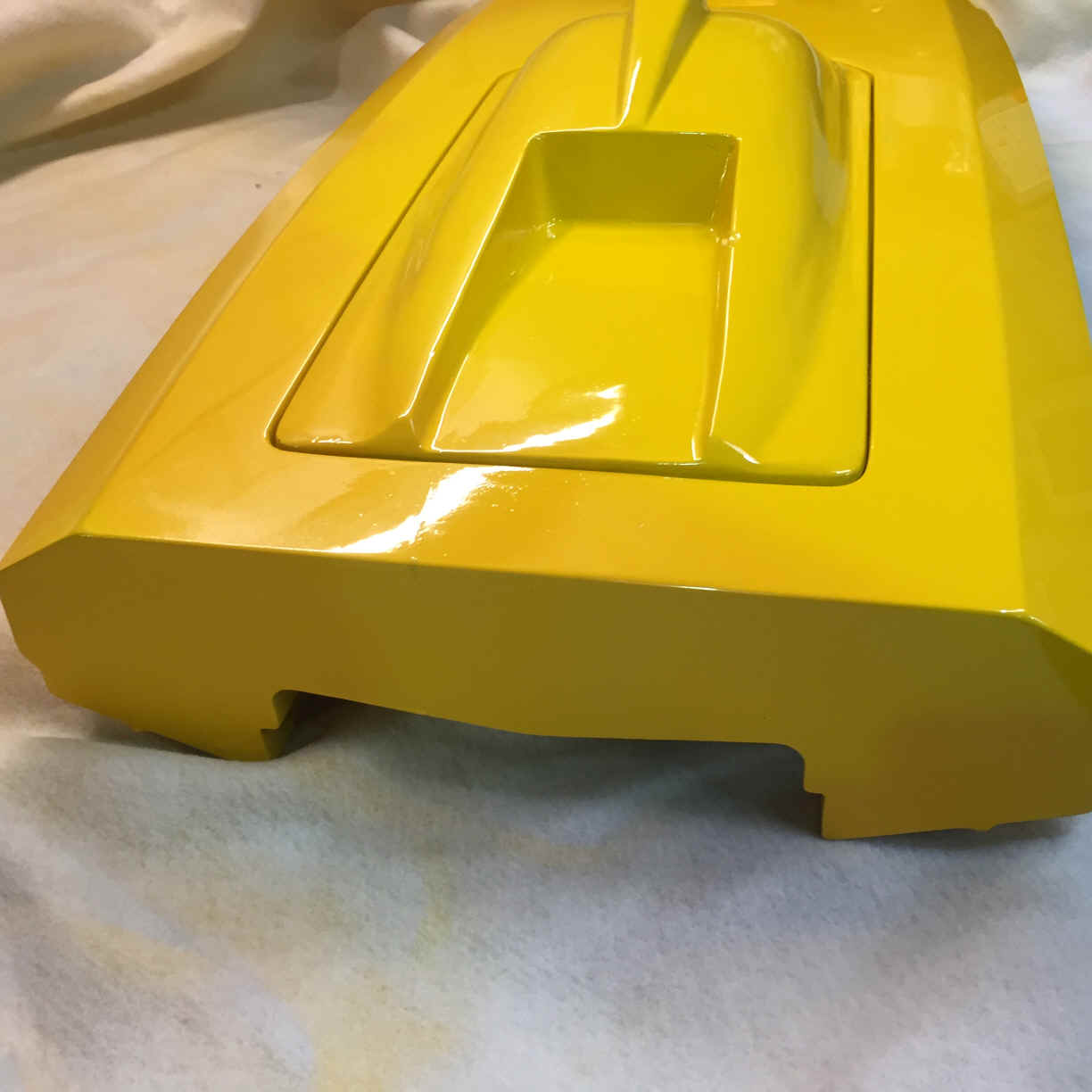

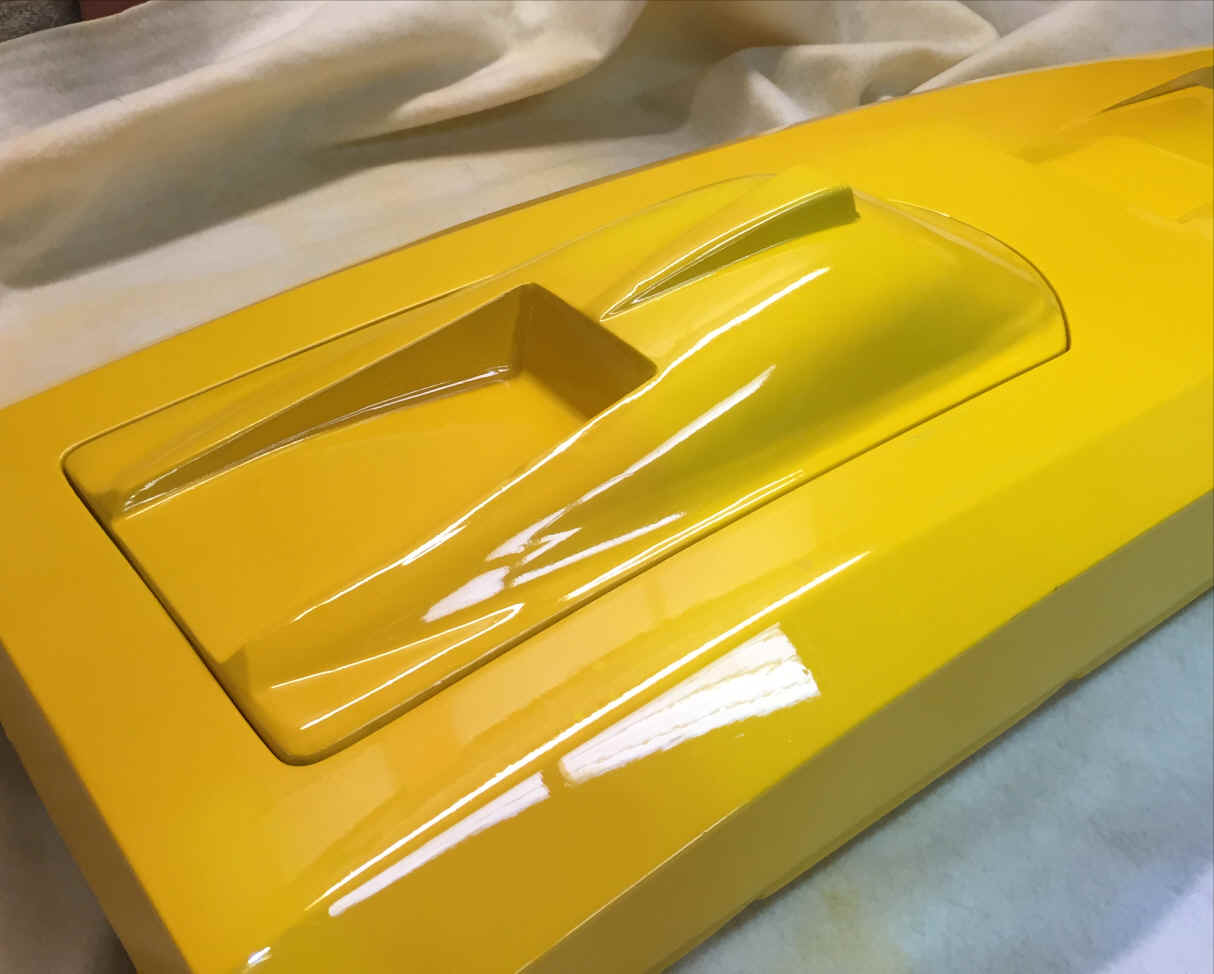

All of our racing boats are made from epoxy and glass or carbon kevlar and are vacuum moulded with multiple layers of material. This gives a very light and strong moulding which is far better than normal fibreglass. Do not confuse these boats with normal fibreglass boats. These are top quality lightweight epoxy mouldings made with up to 5 layers of glass reinforced with  carbon and  slow setting epoxy resin which means no distortion, no gel coat cracks  and they are VERY strong. The mould and moulding are vacuum bagged and left in an oven for 16 hours at 50C and then postcured at 25C for 24 hours after removal from the mould.  They are then joined with kevlar or glass and again cured overnight in the oven. This makes for an extremely strong, stiff and lightweight racing boat.

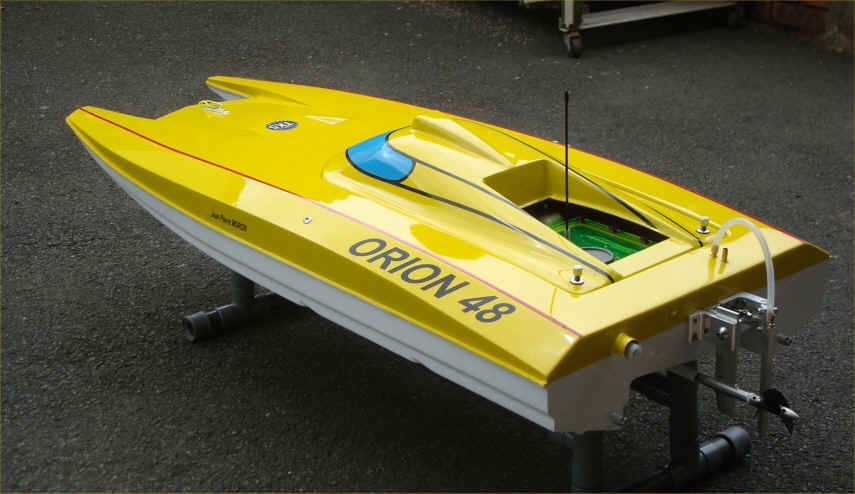

                      ORION 48 Glass and carbon epoxy vacuum moulded with rails.   Standard racing version of Orion.



395.00

wpe12F.jpg (61578 bytes)  wpe124.jpg (70132 bytes) wpe128.jpg (54684 bytes) wpe12A.jpg (70794 bytes)



ORION DEAL 4. Ultimate deal. Kit consists of Orion  vacuum moulded epoxy and carbon/ kevlar joined boat with TK5 Tiger King Racetuned 27cc racing engine Full race Tiger King 4 bearing engine 7.6 bhp engine, special watercooled exhaust adapter,  watercooled silenced stainless steel  CS26  tuned pipe, coil relocator, bellcrank type throttle linkage, quiet motor mounts, 1/4" flexishaft assembly including aluminium CNC strut, brackets, tube, drive dog, CNC machined wedge rudder assembly with 2 built in waterpickups, 2 aluminium water outlets, large radio box with special rubber bellows, big bore water silicone tube and tygon fuel tube, stainless steel flexhex flexishaft coupling, aluminium T Bar propshaft support, fuel tank,  quick release hatch clips,  balanced-sharpened 6717/3  blade bronze racing propeller, tube type aerial, rudder and throttle linkages,  turn fins, and tuned pipe mount.  Hull is vacuumed epoxy/carbon kevlar, engine cover is vacuumed epoxy/glass. This is top quality hardware not seen on any other boat kits. Normal price 1204.00.  Special price 995.00.

Additional for upgrade to the TK6 Tiger King 29cc racetuned engine      30.00




995.00

ORION DEAL 5 ARTR. PARTLY ASSEMBLED Ultimate deal.   Motor and motor mounts installed plus coupling,  shaft, tube, rudder, strut, cowl locks, water outlets are all fitted. (some parts removed for shipping)  Consists of ORION 48 epoxy and carbon vacuum joined boat with TK5 Tiger King Racetuned 27cc racing engine Full race Tiger King 4 bearing engine 7.6 bhp engine, watercooled exhaust manifold, watercooled silenced stainless steel  CS26  tuned pipe, coil relocator, bellcrank type throttle linkage, quiet motor mounts, 1/4" flexishaft assembly including aluminium CNC strut, brackets, tube, drive dog, CNC machined wedge rudder assembly with 2 built in waterpickups, 2 aluminium water outlets, large radio box with special rubber bellows and servo mount plate, big bore water silicone tube and tygon fuel tube, stainless steel flexhex flexishaft coupling, aluminium T Bar propshaft support, fuel tank, 1/4 turn quick release hatch clips,  balanced-sharpened 7015/2 2 blade bronze racing propeller, tube type aerial, rudder and throttle linkages,  turn fins and tuned pipe mount.  This is top quality hardware not seen on any other boat kits. Hull is vacuumed epoxy/carbon kevlar, engine cover is vacuumed epoxy/glass. Normal price 1304.00.  Special price 1050.00.

Additional for upgrade to the TK6 Tiger King 29cc racetuned engine     30.00


1150.00
