Fast Electric Motors

Fast Electric RC Model Boats

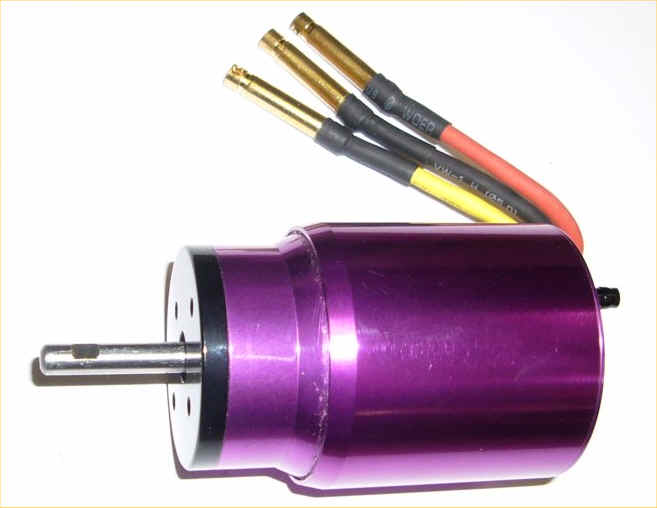

BL1 Brushless watercooled motor 2858 . 2600KV . 2600 revs per volt. For 8.4 to 18 volts. 2S or  4S lipo or 7 to 10 Nicad or NIMH packs. 28mm motor diameter, 32mm overall diameter, 58mm long. 3.2mm shaft diameter   Replacement for 380 to 550 size motors but MUCH more powerful. 3.2mm output shaft.

34.95

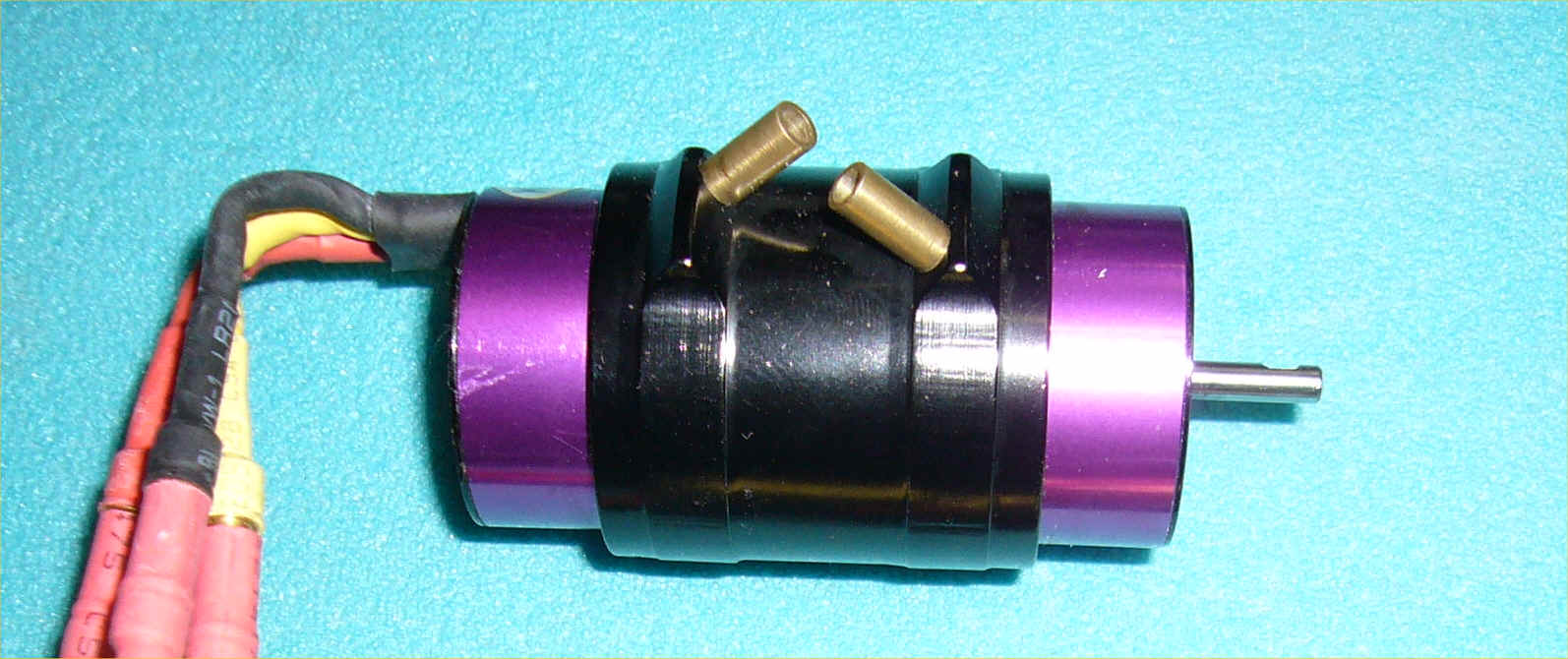

BL4 RECOMMENDED for Mono boats.  Brushless Watercooled Motor  3674 1200W  1900 KV For 8.4 to 22 volts. 3S to  6S lipo or 7 to 16 Nicad or NIMH packs. Mounting hole spacing of 19mm or 25mm. Motor diameter 36mm, waterjacket 46mm diameter, length 74mm. shaft diameter 5mm. Max Amps 85.
   Use with 70 to 120 Amp speed controller.
44.95
BL5A

Powerful 4082 brushless watercooled 4.8hp,  3700Watts, 1900KV electric motor 40mm motor diameter, 82mm long,  with 25mm  hole centres for mounting holes.  Use with a 120Amp  ESC (speed controller)

Max Amps: 110A
Max Volt: 30V
Max Watts: 3700
Rpm/V: 1400kv
Dimension: 40mm x 74mm
Length of extend Shaft: 16mm
Shaft diameter: 5mm
Weight: 446gms
89.00
BL9 Monster 6.5 horsepower brushless watercooled 5693 motor. RECOMMENDED for Mono's and cats when replacing a gas motor .  Brushless 56mm diameter motor, 93mm long 1000KV For up to 12S lipo (2 x 6S). Mounting hole spacing of 29, shaft diameter 8mm. Max Amps 290.  5500 watts (7.3bhp)
   Use with 180 Amp speed controller.

117.95

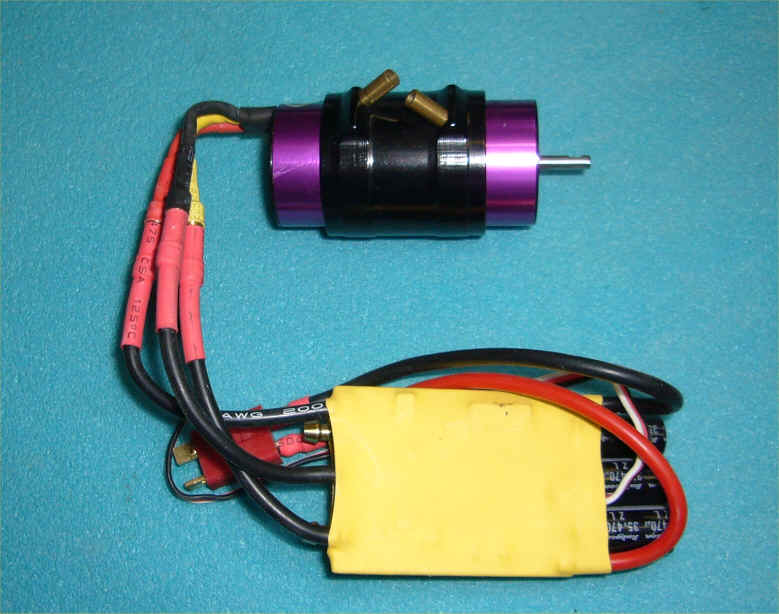

BL10 Brushless watercooled COMBO of 4 pole 2858 motor  with 50 amp speed controller that has BEC. 2600 KV which is 2600 rev per volt. For 8.4 to 12 volts. 2S to 4S lipo or 7 to 10 Nicad or NIMH packs. 3.2mm shaft diameter  motor is 32mm overall diameter and 58mm long. Replacement for 380 to 550 size motors but MUCH more powerful. .    wpe98.jpg (113175 bytes)

67.95



BL10A Brushless watercooled COMBO of 3674 1900kv motor and 90 Amp ESC.  For 8.4 to 18 volts.Up to  5S lipo.  Mounting hole spacing of 19mm or 25mm. Motor diameter 36mm,  length 74mm. shaft diameter 5mm. Max Amps 85 complete with matching 90AMP TGY controller ESC Colour of the motor may vary from the pic. .wpe9D.jpg (20519 bytes)    wpe9B.jpg (36086 bytes)
87.95

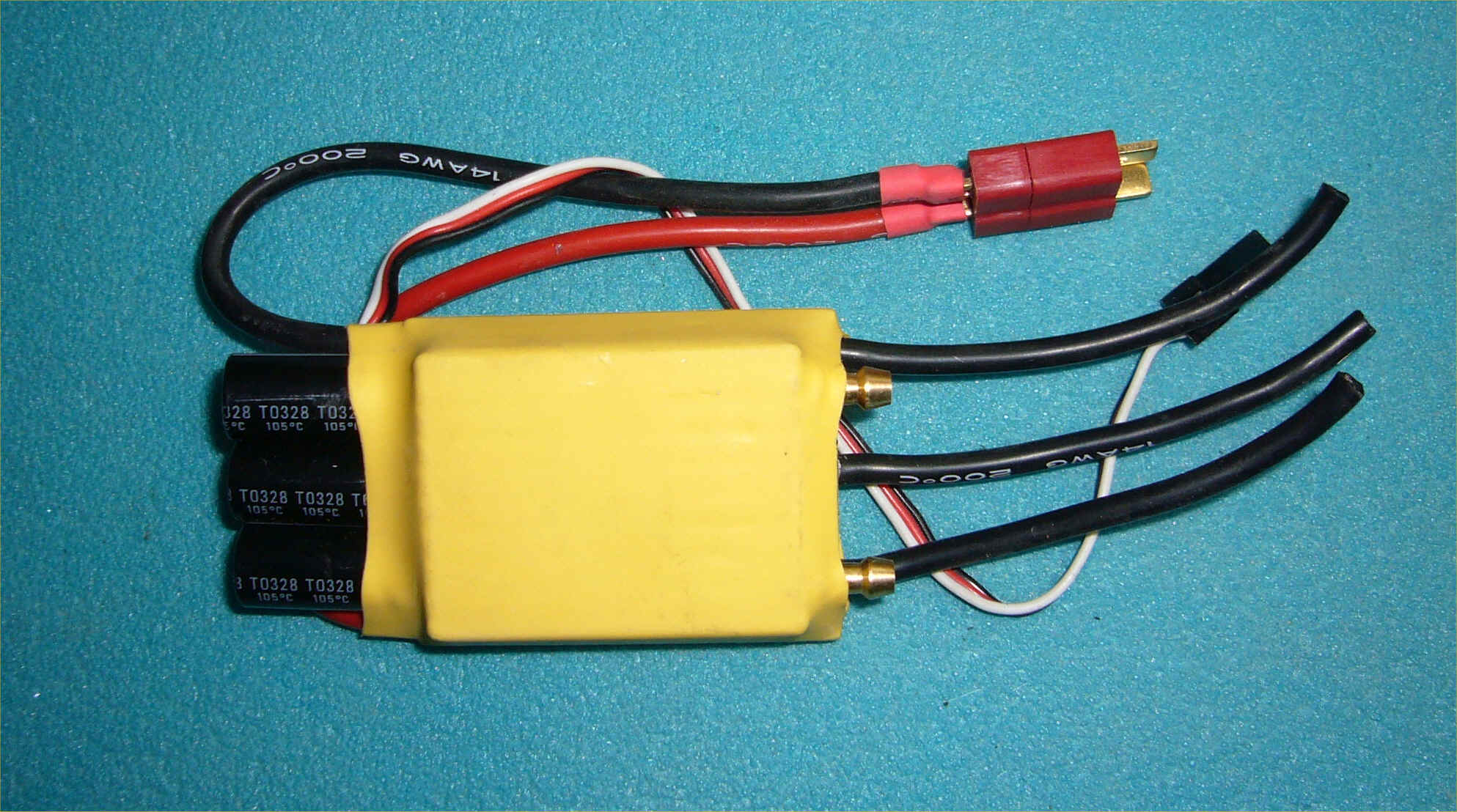

BL11  TGY Brushless watercooled 50Amp Speed control (ESC)  with 90 Amp burst. complete with full instructions Battery (cell): 2-4S Lipo 6-18 Cells NiMH. Size 94x33x18, Weight: 81g

Forward or forward and reverse.

37.95

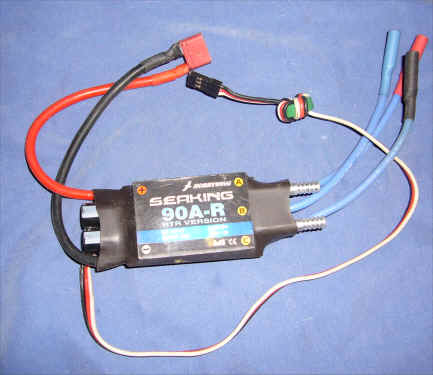

BL13  TGY Brushless watercooled 90Amp Speed control (ESC)
Constant Current: 90A
Burst Current: 180A
Resistance: .0007ohm
Battery: 2-6S Lipoly
BEC: 4A/6v
Motor Type: Sensorless Brushless
Size: 94 x 33 x 18mm
Weight: 91g

forward or forward and reverse.

47.95
BL15  TGY Brushless watercooled 120Amp Speed control (ESC)
Constant Current: 120A
Burst Current: 240A
Resistance: .0007ohm
Battery: 2-6S Lipoly
BEC: 3A/6v
Motor Type: Sensorless Brushless
Size: 94 x 33 x 18mm
Weight: 105g

forward or forward and reverse.

68.00
BL16  RAID  Brushless watercooled 160Amp Speed control (ESC)
Constant Current: 160A
Burst Current: 300A
Resistance: .0007ohm
Battery: 2-6S Lipoly
BEC: 3A/6v
Motor Type: Sensorless Brushless
Size: 94 x 33 x 22mm
Weight: 115g

forward or forward and reverse.

72.00

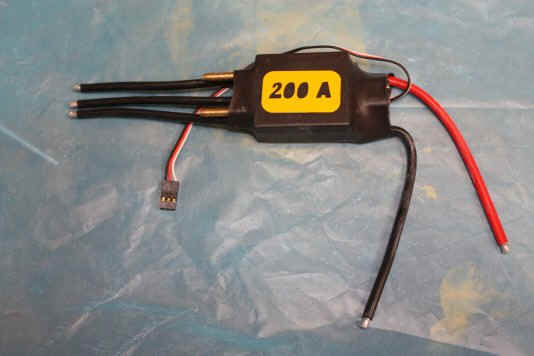

BL17  HW/TGY Brushless watercooled 180Amp Speed control (ESC)
Constant Current: 180A
Burst Current: 360A
Resistance: .0007ohm
Battery: 2-6S Lipoly
BEC: 5A/6v
Motor Type: Sensorless Brushless
Size:120mm x 33 x 18mm
Weight: 130g

forward or forward and reverse.

118.00
BL50  Hobbyking marine only programming card. Not essential for programming HK ESC's but makes it easier to program. .wpe31.jpg (31066 bytes)
9.95
BL51  Turnigy marine Programming card. Not essential but makes it easier to program.  .
12.95
EM123 Charger and balance charger  for Lipo, Life and NIMH batteries. works from mains or a 12volt battery. wpe6A.jpg (63981 bytes) 38.95
EM121 28mm inside diameter waterjacket for 28 series motors. wpeA9.jpg (16829 bytes) 8.00
EM123 28mm inside diameter waterjacket for 28 series motors. wpeA9.jpg (16829 bytes) 8.00
EM124 36mm inside diameter waterjacket for 36 series motors. wpe9D.jpg (14637 bytes) 12.00
EM125 40mm inside diameter waterjacket for 40 series motors. wpe9D.jpg (14637 bytes) 14.00
EM126 56mm inside diameter waterjacket for 56 series motors. wpe9F.jpg (14637 bytes) 16.00
